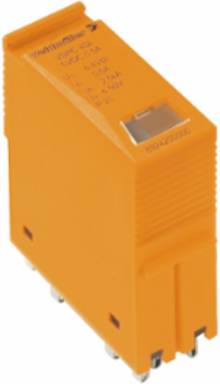

Weidmuller 8924210000 VSPC 2SL 5VDC
- MPN: 8924210000
- PPN: WDM-8924210000
CAD
$142.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Surge protection for instrumentation and control, 5 V, 300 mA, IEC 61643-21
Documentation & Downloads
Specifications
Further Details Of Approvals
- GOST certificate
- GOST-Zertifikat
General Data
- Colour
- orange
- Optical function display
- No
- Segment
- Measurement - Monitoring - Setting
- Version
- without warning function / function indicator
DesignTerminal, miscellaneous
Protection degreeIP20
UL 94 flammability ratingV-0
protected binary signals2
Probability Of Failure
- λges
- 43
- PFH in 1*10
- 8.9
- SIL PAPER
- SIL Paper
MTTF2,665 Years
SFF79.3 %
SIL in compliance with IEC 615082
Approvals
- Approvals
- CE, CSAEX, EAC, FUSAFETY, OEVE, UL
- UL File Number Search
- E311081
ROHSConform
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
Surge voltage categoryIII
Rated Data Iec / En
- Capacitance
- 2.0 nF
- Fuse
- 0.5 A
- Max. continuous voltage, Uc (DC)
- 6.4 V
- Overload - failure mode
- Modus 2
- Protection level on output side Wire-PE 1kV/µs, typically
- 12 V
- Protection level on output side Wire-wire 8/20 µs, typically
- 25 V
- Pulse-reset capacity
- ≤ 20 ms
- Rated voltage (DC)
- 5 V
- Signal transmission properties (-3 dB)
- 1.2 MHz
- Standards
- IEC 61643-21
- Surge current-carrying capacity C2
- 5 kA 8/20 μs
- Surge current-carrying capacity D1
- 2.5 kA 10/350 μs
- Volume resistance
- 4.7 Ω
Discharge current I2.5 kA
Lightning test current, I2.5 kA
Number of poles1
Protection level U< 200 V
Protection level on output side Wire-wire 1 kV/µs, typically25 V
Protection level, U10 V
Rated current I300 mA

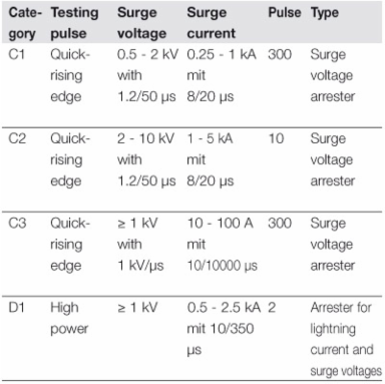

Requirements category acc. to IEC 61643-21C1, C2, C3, D1
Signalling contactNo
Surge current-carrying capacity C1< 1 kA 8/20 μs
Surge current-carrying capacity C3100 A 10/1000 μs
Voltage typeDC
Dimensions And Weights
- Width
- 17.8 mm
- Height
- 90 mm
- Depth
- 69 mm
- Net weight
- 42 g
Width (inches)0.701 inch
Height (inches)3.543 inch
Depth (inches)2.717 inch
Csa Protection Data
- Gas group C
- IIB
- Gas groups A, B
- IIC
- Internal capacity, max. C
- 2 nF
Gas group DIIA
Input voltage, max. U6.4 V
Internal inductance, max. L0 µH
Connection Data
- Type of connection
- Pluggable in VSPC BASE
Rated Data Ul
- Certificate No. (UL)
- E311081
UL certificateUL 497b Certificate
Tender Specification Sheets
- Long specification

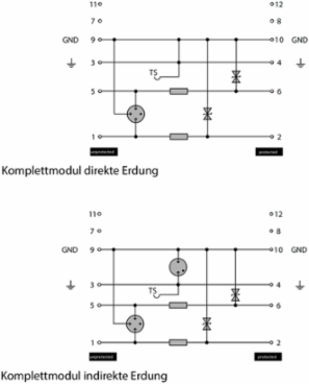

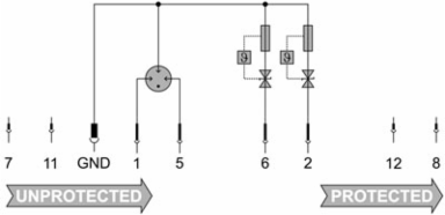

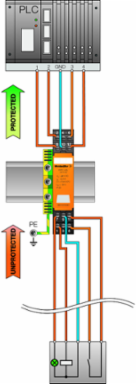

- Surge protection plug for use in connection with the base element VSPC BASE 2SL for two wires with a common ground. Two-stage protection circuit in the plug consisting of coarse protection, decoupling resistors and fine protection between the signal wires and the signal ground/ground/earth. Mechanical identification of the plug to the base element according to the switching type and rated voltage. Protected plug with coding pin and counter-profile for the base element. Optical identification of the protected plug based on the type of protected switching and the voltage level. It is possible to mark the plug.
Short specificationSurge protection plug for base element VSPC BASE 2SL, coarse and fine common mode voltage protection for two wires with a common ground. Version: 5 V DC
Classifications
- ETIM 6.0
- EC000943
- eClass 9.0
- 27-13-08-07
- eClass 10.0
- 27-13-08-07
ETIM 7.0EC000943
eClass 9.127-13-08-07
UNSPSC30-21-19-21
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Humidity
- 5...96 %
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...80 °C
Operating temperature, max.70 °C
Storage temperature, max.80 °C
Operating temperature-40 °C...70 °C
Ratings Iecex/Atex/Cul
- cUL certificate
- cUL Certificate
