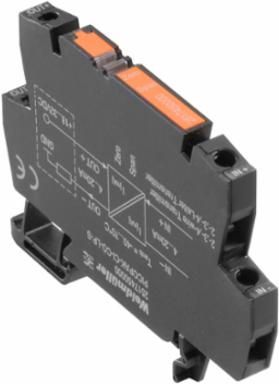

Weidmuller 2517450000 PICOPAK-CI-CO-LP-S
- MPN: 2517450000
- PPN: WDM-2517450000
CAD
$304.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal converter/insulator, Signal converter/isolator, Output current loop powered, Input : 4-20 mA, Output : 4-20 mA
Documentation & Downloads
Specifications
General Data
| Accuracy | < 0.1 % of measuring range |
|---|---|
| Galvanic isolation | 2-way isolator |
| Power consumption, max. | 0.85 W |
| Rail | TS 35 |
| Step response time | ≤ 5 ms |
| Voltage supply | Output loop powered |
| Configuration | Potentiometer |
|---|---|
| Long-term drift | ≤±0.05% of the measurement range / year |
| Power consumption, typ. | 0.55 W |
| Standard | EN 61010-1, EN 61326-1, UL 61010-1:2012, 3rd Edition |
| Temperature coefficient | ≤ 200 ppm/K |
Approvals
| Approvals | CULUSEX, cURus |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|

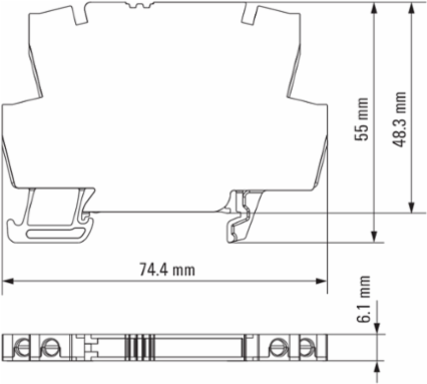

Dimensions And Weights
| Width | 6.1 mm |
|---|---|
| Height | 79.4 mm |
| Depth | 55 mm |
| Weight | 50 g |
| Width (inches) | 0.24 inch |
|---|---|
| Height (inches) | 3.126 inch |
| Depth (inches) | 2.165 inch |
| Net weight | 48 g |
Connection Data
| Type of connection | Screw connection |
|---|---|
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire cross-section, finely stranded, min. (AWG) | AWG 20 |
| Tightening torque, max. | 0.6 Nm |
|---|---|
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire cross-section, finely stranded, max. (AWG) | AWG 12 |
Rated Data Ul
| Certificate No. (cURus) | E141197 |
|---|
Input
| Number of inputs | 1 |
|---|---|
| Input current | 4...20 mA |
| Sensor | Current source |
|---|---|
| Voltage drop, current input | ≤3,5 V |
Classifications
| ETIM 6.0 | EC002653 |
|---|---|
| eClass 9.0 | 27-21-01-20 |
| eClass 10.0 | 27-21-01-20 |
| ETIM 7.0 | EC002653 |
|---|---|
| eClass 9.1 | 27-21-01-90 |
Output
| Number of outputs | 1 |
|---|---|
| Cut-off frequency (-3 dB) | ≥3,5 kHz |
| Supply voltage (output) | 18…32 V |
| Output current | 4...20 mA, loop-powered |
|---|---|
| load impedance current | ≤ 600 Ω |
Product Information

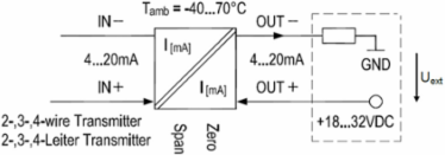

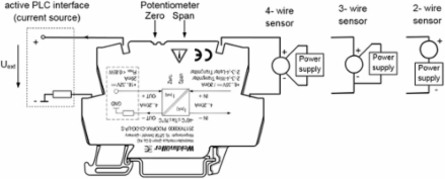

| Product information | The passive Isolator PicoPak-CI-CO-LP separates stand- analogue current signals. An analogue input current signal is converted linear and galvanic isolated into an analogue out- put current signal. The power supply occurs through the input and output measuring circuit. The measuring range can be adjusted if necessary via the potentiometers (Zero and Span) installed on the front. |
|---|
Insulation Coordination
| EMC standards | EN 61326-1 |
|---|---|
| Insulation voltage | 3.5 kV |
| Rated voltage | 300 V ACrms |
| Surge voltage category | II |
| Galvanic isolation | 2-way isolator |
|---|---|
| Pollution severity | 2 |
| Standard | EN 61010-1, EN 61326-1, UL 61010-1:2012, 3rd Edition |
Temperatures
| Humidity | 0...95 % (no condensation) |
|---|---|
| Operating temperature, min. | -40 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
| Operating temperature, max. | 70 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -40 °C...70 °C |
