Schneider Electric NSYS3X10830H Spacial S3X Wall Mounted Enclosure, 1000x800x300mm, Stainless Steel 316L, IP66
- MPN: NSYS3X10830H
- PPN: SCH-NSYS3X10830H
CAD
$4536.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

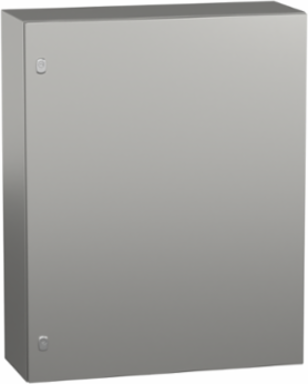

Engineered by Schneider Electric, this wall-mounted enclosure is crafted from high-grade Stainless Steel 316L, ensuring durability and resistance to harsh environments. The Spacial S3X model boasts an impressive IP66 rating, providing a robust safeguard against dust and water infiltration, making it ideal for outdoor or industrial applications. Measuring 1000x800x300mm, this enclosure offers ample space for housing critical automation and control equipment, as well as data and communication technology. Its reliable construction is designed to meet the evolving demands of IT enclosures and racks, ensuring that your components are well protected and efficiently organized.
Documentation & Downloads
Specifications
Additional
- Device Application
- Multi-purpose
- IP Degree Of Protection
- IP66 IEC 60529
- Enclosure Nominal Height
- 1000 mm (39.37 in.)
- Enclosure Nominal Depth
- 300 mm (11.81 in.)
- Door Opening Side
- Reversible 120°
- Body Type
- Single piece body, cross-shaped structure, gutter shaped front rail
- Type Of Gland Plate
- Without gland plate
- Accessibility For Operation
- Front
- Surface Finish
- Body and door Scotch-Brite® brushed, lock chromium plated
- Standards
- IEC 62208
- Mercury Free
- Yes
- Warranty
- 18 months
Lock Type2 points lock, 3 mm double-bar
IK Degree Of ProtectionIK10 IEC 62262
Enclosure Nominal Width800 mm (31.50 in.)
Number of Doors1 front face
Installation Accessory TypeWall-mounting
Removable PartsDoor by hinges
Mounting Plate DescriptionWithout mounting plate
MaterialBody and door stainless steel 316L, lock zamak, hinge stainless steel
Environmental CharacteristicSpecific hygiene, corrosive
Product CertificationsCAN/CSA 22, UL 508 type A
Sustainable Offer StatusGreen Premium product
Country of OriginFrance
