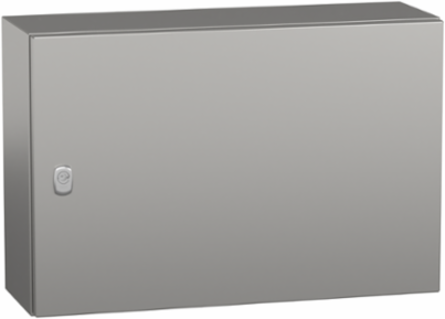

Schneider Electric NSYS3X4620H Spacial S3X Wall Mount Enclosure 400x600x200mm Stainless Steel 316L IP66
- MPN: NSYS3X4620H
- PPN: SCH-NSYS3X4620H
CAD
$2650.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Crafted for durability and reliability, this wall mount enclosure from Schneider Electric is designed to meet demanding automation and control needs. Made from high-quality stainless steel 316L, it enhances protection against extreme environments, boasting an IP66 rating that ensures resistance to dust and water ingress. With dimensions of 400x600x200mm, this enclosure provides ample space for securely housing equipment, making it an essential choice for data and communication applications in both industrial and IT settings.
Documentation & Downloads
Specifications
Additional
- Material
- body and door stainless steel 316L, lock zamak, hinge stainless steel
- IK Degree of Protection
- IK10 IEC 62262
- Mounting Type
- wall-mounting, without mounting plate
- Door Opening Side
- reversible 120°
- Body Type
- single piece body, cross-shaped structure, gutter shaped front rail
- Standards
- IEC 62208
- Environmental Characteristic
- specific hygiene, corrosive
- Country of Origin
- France
- Sustainable Offer Status
- Green Premium product
- RoHS Compliance
- Pro-active compliance (Product out of EU and China RoHS legal scope)
IP Degree of ProtectionIP66 IEC 60529
Size / Dimensions400 x 600 x 200 mm (H x W x D)
Door Typeplain solid, front face 1 door, door by hinges
Lock Type3 mm double-bar lock, chromium plated
Surface FinishScotch-Brite® brushed
Product CertificationsCAN/CSA 22, UL 508 type A
Net Weight9.246 kg (20.38 lb)
Warranty18 months
Mercury FreeYes
