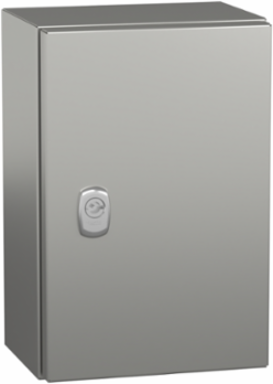

Schneider Electric NSYS3X3215H Spacial S3X Wall Mounted Enclosure, 300x200x150mm, IP66, Stainless Steel 316L
- MPN: NSYS3X3215H
- PPN: SCH-NSYS3X3215H
CAD
$694.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Engineered by Schneider Electric, this wall-mounted enclosure offers reliable protection and versatile application for a variety of automation and control needs. Constructed from robust stainless steel 316L, it is designed to withstand harsh environments, featuring an IP66 rating that ensures exceptional resistance to dust and water ingress. Measured at 300 x 200 x 150 mm, this enclosure is ideal for housing sensitive equipment in data and communication setups, delivering both functionality and durability while maintaining the integrity of internal components.
Documentation & Downloads
Specifications
Additional
- IP Degree of Protection
- IP66 IEC 60529
- Installation
- Wall-mounting
- Number of Doors
- 1 front face
- Lock Type
- 3 mm double-bar lock
- Net Weight
- 3.12 kg
- Body Type
- Single piece body, cross-shaped structure, gutter shaped front rail
- Accessibility For Operation
- Front
- Mounting Plate Description
- Without mounting plate
- Environmental Characteristic
- Corrosive, specific hygiene
- Sustainable Offer Status
- Green Premium product
- Country of Origin
- France
IK Degree of ProtectionIK10 IEC 62262

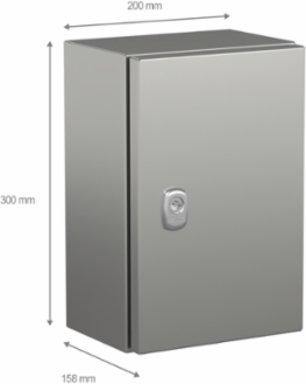

Size11.81 in (300 mm) H x 7.87 in (200 mm) W x 5.91 in (150 mm) D
Door Opening SideReversible 120
Door TypePlain (solid)
MaterialBody and door stainless steel 316L, lock zamak, hinge stainless steel
Surface FinishBody and door Scotch-Brite brushed, lock chromium plated
Type Of Gland PlateWithout gland plate
ComplianceUL 508 type A, CAN/CSA 22, IEC 62208
Mercury FreeYes
Warranty18 months
