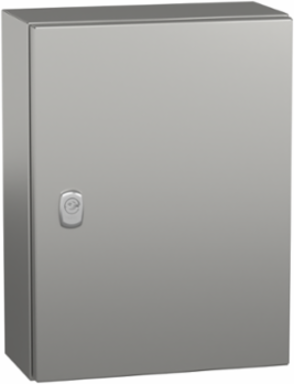

Schneider Electric NSYS3X4315H Spacial S3X Wall Mounted Enclosure 400x300x150mm IP66 Stainless Steel 316L
- MPN: NSYS3X4315H
- PPN: SCH-NSYS3X4315H
CAD
$952.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric NSYS3X4315H Spacial S3X Wall Mounted Enclosure is designed to provide exceptional protection for sensitive equipment in various environments. With its robust IP66 rating, this enclosure ensures reliable performance against dust and water ingress, making it suitable for demanding conditions. Crafted from high-quality stainless steel 316L, it not only offers durability but also resists corrosion, ensuring longevity in challenging settings. With dimensions of 400x300x150mm, this enclosure is ideal for installations where space is limited, providing a secure housing solution for your automation and control, data, and communication needs.
Documentation & Downloads
Specifications
Additional
- Environmental Characteristic
- specific hygiene, corrosive
- Product Certifications
- CAN/CSA 22, UL 508 type A
- IP Degree of Protection
- IP66 IEC 60529
- Product or Component Type
- compact enclosure
- Enclosure Nominal Width
- 300 mm (11.81 in)
- Door Opening Side
- reversible 120°
- Product Installation
- wall-mounting
- Accessibility for Operation
- front
- Material
- body and door stainless steel 316L, lock zamak, hinge stainless steel
- Mounting Plate Description
- without mounting plate
- Device Composition
- 1 body, 1 lock door, 1 door
- Body Type
- single piece body, cross-shaped structure, gutter shaped front rail
- RoHS Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2109018EN
Warranty18 months
IK Degree of ProtectionIK10 IEC 62262
Device Applicationmulti-purpose
Enclosure Nominal Height400 mm (15.75 in)
Enclosure Nominal Depth150 mm (5.91 in)
Number of Doors1 front face
Net Weight4.966 kg (10.95 lb)
Removable Partsdoor by hinges
Surface FinishScotch-Brite® brushed (body and door), chromium plated (lock)
Type of Gland Platewithout gland plate
Lock Type3 mm double-bar lock
Mercury FreeYes
China RoHS RegulationProduct out of China RoHS scope
