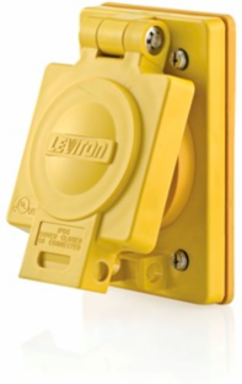

Leviton 69W08 Wetguard Watertight Locking Receptacle, 30 Amp, 125/250 Volt, 3-Pole
Leviton 69W08 Wetguard Watertight Locking Receptacle, 30 Amp, 125/250 Volt, 3-Pole
- MPN: 69W08
- UPC: 078477074084
- PPN: LEV-69W08
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$186.21/ EA
Description

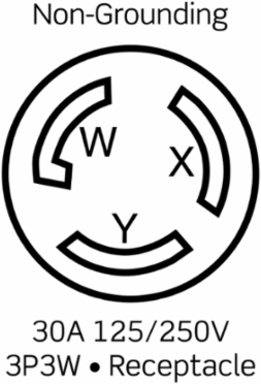

30 Amp, 125/250 Volt, Non-NEMA, 3P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Non-Grounding, Wetguard w/Cover - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
- ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
- MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
- DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion
Specifications
Material Specifications
- Base Material
- Nylon
- Grounding Screw
- Brass 8-32
- Terminal Screws
- Brass 10-32
Face MaterialNylon
Line ContactsBrass .040 Thick
YokeNickel-Plated Brass .050 Thick
Mechanical Specifications
- Product ID
- Ratings permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, White-Neutral
Terminal Accom.18-10 AWG
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Amperage
- 30 A
- Color
- Yellow
- Grounding
- Non-Grounding
- Pole
- 3
- Strap Material
- Nickel-Plated Brass
- Voltage
- 125/250 VAC
- Wire
- 3
BrandWetguard
Device TypeLocking Outlet
NEMANon-NEMA
Standards and CertificationsNon-UL
TerminationBack
WarrantyLimited Lifetime Warranty
Environmental Specifications
- Environment
- Wet
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-2 per UL 94
Electrical Specifications
- Current Limiting
- Full Rated Current
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
Dielectric VoltageWithstands 2000V per UL498
