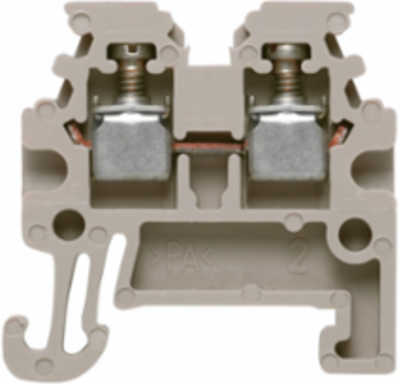

Weidmuller 1753280000 WDU 1.5/R3.5
Weidmuller 1753280000 WDU 1.5/R3.5
- MPN: 1753280000
- PPN: WDM-1753280000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$2.89/ EA
Description
W-Series, Feed-through terminal, Rated cross-section: 1.5 mm², Screw connection
Specifications
Approvals
- Approvals
- CE, CSA, DEMKOATEX, EAC, IECEXULD, KEMAKEUR, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 3.5 mm
- Height
- 24.5 mm
- Depth
- 24 mm
- Depth including DIN rail
- 25 mm
- Net weight
- 1.57 g
Width (inches)0.138 inch
Height (inches)0.965 inch
Depth (inches)0.945 inch
Weight2.39 g
Dimensions
- TS 15 offset
- 13.5 mm
Csa Rating Data
- Certificate No. (CSA)
- 12400-398
- Voltage size D (CSA)
- 300 V
- Wire cross section min. (CSA)
- 26 AWG
Current size D (CSA)10 A
Wire cross section max. (CSA)14 AWG
2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)
- Wire connection cross section, finely stranded, two clampable wires, min.
- 0.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
- 0.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.0.75 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.0.5 mm²
Additional Technical Data
- Explosion-tested version
- Yes
- Open sides
- right
Number of similar terminals1
Type of mountingSnap-on
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, for plug-in cross-connector, One end without connector
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 15
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Temperatures
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Storage temperature, min.
- 10 °C
- Continuous operating temp., min.
- -60 °C
Storage temperature, max.40 °C
Storage temperature10 °C...40 °C
Continuous operating temp., max.130 °C
Conductors For Clamping (Additional Connection)
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 2.5 mm²
Rating Data
- Rated cross-section
- 1.5 mm²
- Rated current
- 17.5 A
- Standards
- IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 0.56 W
- Pollution severity
- 3
Rated voltage400 V
Current at maximum wires17.5 A
Volume resistance according to IEC 60947-7-x1.83 mΩ
Rated impulse withstand voltage4 kV
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- DEMKO14ATEX1338U
- Max. voltage (ATEX)
- 275 V
- Wire cross section max. (ATEX)
- 1.5 mm²
- Current (IECEX)
- 15 A
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Ex 2014/34/EU label
- II 2 G D
Certificate No. (IECEX)IECEXULD14.0005U
Current (ATEX)15 A
Max. voltage (IECEX)275 V
Wire cross section max. (IECEX)1.5 mm²
Marking EN 60079-7Ex eb II C Gb
Conductors For Clamping (Rated Connection)
- Blade size
- 0.4 x 2.5 mm
- Clamping range, min.
- 0.13 mm²
- Connection cross-section, stranded, max.
- 1.5 mm²
- Connection direction
- on side
- Number of connections
- 2
- Tightening torque, min.
- 0.3 Nm
- Wire connection cross section AWG, max.
- AWG 14
- Wire connection cross section, finely stranded, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 1.5 mm²
Clamping range, max.1.5 mm²
Clamping screwM 2
Connection cross-section, stranded, min.1.5 mm²
Gauge to IEC 60947-1A1
Stripping length7 mm
Type of connectionScrew connection
Wire connection cross section AWG, min.AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.0.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 26 AWG
- Conductor size Field wiring min. (UR)
- 26 AWG
- Current size D (UR)
- 10 A
- Voltage size D (UR)
- 300 V
Conductor size Factory wiring max. (UR)14 AWG
Conductor size Field wiring max. (UR)14 AWG
Current size B (UR)15 A
Voltage size B (UR)300 V
