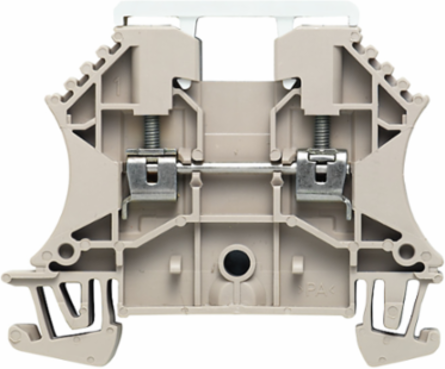

WDU 2.5/TC TYP J
Weidmuller

Weidmuller 1024300000 WDU 2.5/TC TYP J

  • MPN: 1024300000
  • PPN: WDM-1024300000

CAD

$19.56

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

W-Series, Feed-through terminal, Thermocouple, Rated cross-section: 2.5 mm², Screw connection

Documentation & Downloads

Specifications

Approvals

Approvals
CE, CSAEX, DEMKOATEX, EAC, EXIKONF, IECEXSIR, IECEXULD, INMETRO, KEMAKEUR
ROHSConform

Dimensions And Weights

Width
10.2 mm
Height
60 mm
Depth
50 mm
Depth including DIN rail
50.5 mm
Net weight
15.66 g
Width (inches)0.402 inch
Height (inches)2.362 inch
Depth (inches)1.969 inch
Weight17.14 g

Dimensions

TS 35 offset
32 mm

Additional Technical Data

Explosion-tested version
No
Open sides
right
Number of similar terminals1
Type of mountingSnap-on

Material Data

Material
Wemid
UL 94 flammability rating
V-0
Colourdark beige

Safety Note

Safety notice
Safety Information

Classifications

ETIM 6.0
EC000904
eClass 9.0
27-14-11-42
eClass 10.0
27-14-11-42
ETIM 7.0EC000904
eClass 9.127-14-11-42
UNSPSC30-21-18-11

System Specifications

Version
Screw connection, Thermocouple
Number of potentials
1
Number of clamping points per level
2
Levels cross-connected internally
No
Rail
TS 35
PE function
No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo

Temperatures

Operating temperature range
For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Storage temperature, min.
10 °C
Continuous operating temp., min.
-60 °C
Storage temperature, max.40 °C
Storage temperature10 °C...40 °C
Continuous operating temp., max.130 °C

Rating Data

Rated cross-section
2.5 mm²
Volume resistance according to IEC 60947-7-x
1.33 mΩ
Pollution severity
3
StandardsIEC 60584, IEC 60947-7-1
Power loss in accordance with IEC 60947-7-x0.77 W

Rating Data Iecex/Atex

Certificate No. (ATEX)
DEMKO14ATEX1338U
Max. voltage (ATEX)
55 V
Wire cross section max. (ATEX)
2.5 mm²
Current (IECEX)
8 A
Operating temperature range
For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Ex 2014/34/EU label
II 2 G D
Certificate No. (IECEX)IECEXULD14.0005U
Current (ATEX)8 A
Max. voltage (IECEX)55 V
Wire cross section max. (IECEX)2.5 mm²
Marking EN 60079-7Ex eb II C Gb

Conductors For Clamping (Rated Connection)

Blade size
0.6 x 3.5 mm
Clamping range, min.
0.13 mm²
Connection cross-section, stranded, max.
2.5 mm²
Connection direction
on side
Number of connections
2
Tightening torque, max.
0.6 Nm
Torque level with DMS electric screwdriver
1
Twin wire-end ferrules, min.
0.5 mm²
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section, finely stranded, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.5 mm²
Wire connection cross-section, solid core, max.
2.5 mm²
Clamping range, max.2.5 mm²
Clamping screwM 2.5
Connection cross-section, stranded, min.1.5 mm²
Gauge to IEC 60947-1A2
Stripping length10 mm
Tightening torque, min.0.4 Nm
Twin wire-end ferrules, max.1.5 mm²
Type of connectionScrew connection
Wire connection cross section AWG, min.AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.2.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
