Weidmuller 1041500000 WDU 2.5/TC TYP N
Weidmuller 1041500000 WDU 2.5/TC TYP N
- MPN: 1041500000
- PPN: WDM-1041500000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$19.99/ EA
Description

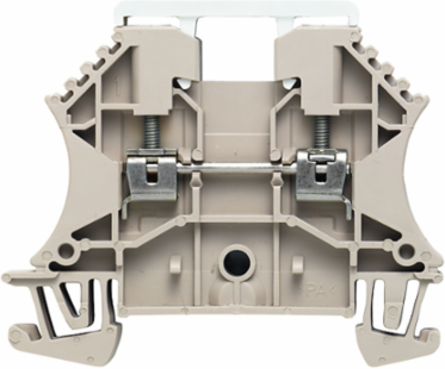

W-Series, Feed-through terminal, Thermocouple, Rated cross-section: 2.5 mm², Screw connection
Specifications
Approvals
- Approvals
- CE, DEMKOATEX, EAC, EXIKONF, IECEXSIR, IECEXULD, INMETRO, KEMAKEUR
ROHSConform
Dimensions And Weights
- Width
- 10.2 mm
- Height
- 60 mm
- Depth
- 50 mm
- Depth including DIN rail
- 50.5 mm
- Net weight
- 16.98 g
Width (inches)0.402 inch
Height (inches)2.362 inch
Depth (inches)1.969 inch
Weight16.88 g
Additional Technical Data
- Explosion-tested version
- No
- Open sides
- right
Number of similar terminals1
Type of mountingSnap-on
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000904
- eClass 9.0
- 27-14-11-42
- eClass 10.0
- 27-14-11-42
ETIM 7.0EC000904
eClass 9.127-14-11-42
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, Thermocouple
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Temperatures
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Storage temperature, min.
- 10 °C
- Continuous operating temp., min.
- -60 °C
Storage temperature, max.40 °C
Storage temperature10 °C...40 °C
Continuous operating temp., max.130 °C
Rating Data
- Rated cross-section
- 2.5 mm²
- Volume resistance according to IEC 60947-7-x
- 1.33 mΩ
- Pollution severity
- 3
StandardsIEC 60584, IEC 60947-7-1
Power loss in accordance with IEC 60947-7-x0.77 W
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- DEMKO14ATEX1338U
- Max. voltage (ATEX)
- 55 V
- Wire cross section max. (ATEX)
- 2.5 mm²
- Current (IECEX)
- 8 A
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Ex 2014/34/EU label
- II 2 G D
Certificate No. (IECEX)IECEXULD14.0005U
Current (ATEX)8 A
Max. voltage (IECEX)55 V
Wire cross section max. (IECEX)2.5 mm²
Marking EN 60079-7Ex eb II C Gb
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.13 mm²
- Connection cross-section, stranded, max.
- 2.5 mm²
- Connection direction
- on side
- Number of connections
- 2
- Tightening torque, max.
- 0.6 Nm
- Torque level with DMS electric screwdriver
- 1
- Twin wire-end ferrules, min.
- 0.5 mm²
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 2.5 mm²
Clamping range, max.2.5 mm²
Clamping screwM 2.5
Connection cross-section, stranded, min.1.5 mm²
Gauge to IEC 60947-1A2
Stripping length10 mm
Tightening torque, min.0.4 Nm
Twin wire-end ferrules, max.1.5 mm²
Type of connectionScrew connection
Wire connection cross section AWG, min.AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.2.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
