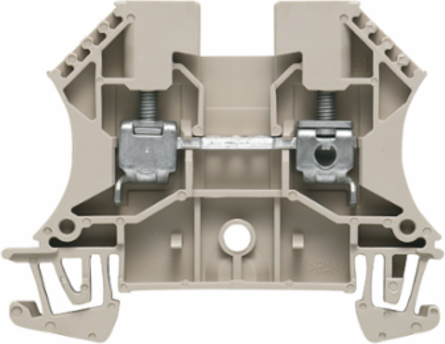

Weidmuller 1781730000 WDU 4 PACK
- MPN: 1781730000
- PPN: WDM-1781730000
CAD
$20.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Feed-through terminal, Screw connection, 4 mm², 800 V, 24 A, dark beige
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, DEMKOATEX, EAC, IECEXULD, KEMAKEUR |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Depth | 46.5 mm |
|---|---|
| Depth including DIN rail | 47 mm |
| Depth (inches) | 1.831 inch |
|---|---|
| Net weight | 150 g |
Additional Technical Data
| Type of mounting | Snap-on |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | dark beige |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000897 |
|---|---|
| eClass 9.0 | 27-14-11-20 |
| eClass 10.0 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
|---|---|
| eClass 9.1 | 27-14-11-20 |
System Specifications
| Version | Screw connection, for plug-in cross-connector, for screwable cross-connection, One end without connector |
|---|---|
| Number of potentials | 1 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| PE function | No |
| End cover plate required | Yes |
|---|---|
| Number of levels | 1 |
| Number of potentials per tier | 1 |
| PE connection | No |
| N-function | No |
| PEN function | No |
Temperatures
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
|---|---|
| Storage temperature, min. | 10 °C |
| Continuous operating temp., min. | -60 °C |
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
Rating Data
| Rated cross-section | 4 mm² |
|---|---|
| Rated current | 24 A |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Rated voltage | 800 V |
|---|---|
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
Rating Data Iecex/Atex
| Certificate No. (ATEX) | DEMKO14ATEX1338U |
|---|---|
| Max. voltage (ATEX) | 690 V |
| Wire cross section max. (ATEX) | 4 mm² |
| Current (IECEX) | 32 A |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Ex 2014/34/EU label | II 2 G D |
| Certificate No. (IECEX) | IECEXULD14.0005U |
|---|---|
| Current (ATEX) | 32 A |
| Max. voltage (IECEX) | 690 V |
| Wire cross section max. (IECEX) | 4 mm² |
| Marking EN 60079-7 | Ex eb II C Gb |
Conductors For Clamping (Rated Connection)
| Clamping screw | M 3 |
|---|---|
| Type of connection | Screw connection |
| Number of connections | 2 |
|---|
