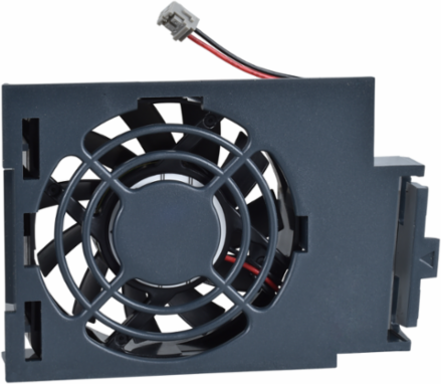

Schneider Electric VZ3V1302 Fan Kit for Altivar 12 & 320, 1.1-4kW, Cooling Accessory
- MPN: VZ3V1302
- PPN: SCH-VZ3V1302
CAD
$51.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This product is a wear part for Drive Altivar 12, Drive Altivar 320. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives ATV12 from 1.5kw to 4kw and a rated voltage from 200V to 240V and for variable speed drives ATV320 from 1.1kw to 4kw and a rated voltage from 200V to 240V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 16.6cm (width) x 23cm (Length) x 7cm (Height) and weighs 160g. This power fan is compatible with ATV12HU15M3H to U40M3, ATV320U11M3C to U40M3C. This kit includes 1 Fan, 1 Mounting bracket, 1 Instruction sheet. Variable Speed Drives for commercial equipment from 0.18 to 4 Kw. For simple and advanced machines.
Features
- Purpose-built as an official Schneider Electric wear part, this kit guarantees an exact physical and electrical match for Altivar 12 (ATV12) drives from 1.5 to 4 kW and Altivar Machine 320 (ATV320) compact drives from 1.1 to 4 kW operating on 200–240V 3-phase power. Sized precisely at 16.6 cm times 23 cm, it eliminates the dangerous vibration and loose housing fit associated with generic third-party fans, ensuring drop-in compatibility for facility maintenance technicians.
- By delivering high-efficiency airflow directly across the drive’s internal power electronics and heat sink, this fan mitigates excessive heat buildup during demanding motor acceleration cycles. Maintaining stable internal temperatures significantly extends the operational lifespan of critical drive capacitors, protecting your automation systems from costly premature thermal degradation and unplanned line stoppages.
- Shipped as a comprehensive field-service kit, this package includes the replacement fan module, a rugged pre-fitted plastic mounting bracket, and a step-by-step instruction sheet. This all-in-one bundle allows plant electricians to execute quick, predictable preventive maintenance intervals without hunting for loose hardware or modifying structural enclosure components.
- Replacing a degraded, dust-clogged factory fan with this genuine Schneider Electric accessory ensures your VFD operates strictly within its original factory-tested thermal parameters. This proactive replacement minimizes the risk of sudden over-temperature faults and protective drive trips under heavy production loads, preserving system safety and maintaining your 18-month contractual hardware warranty coverage.
Documentation & Downloads
Specifications
Additional
- Power Range
- 1.1 to 4 kW
- Product Compatibility
- Variable speed drive ATV12H 1.5-4 kW three phase, Variable speed drive ATV320 1.1-4 kW three phase
- Kit Composition
- Fan, Mounting bracket, Instruction sheet
- Dimensions
- 16.6 cm (W) x 23 cm (L) x 7 cm (H)
- Warranty
- 18 months
- Accessory Category
- Cooling accessory
Voltage200 to 240 V
Range CompatibilityAltivar 12, Altivar 320
Weight160 g
MaterialPlastic
Accessory TypeFan kit
Product TypeFan
