Schneider Electric VX5VPS3001 Altivar 340/600/900 Cooling Fan Kit, 0.52 kg, Compatible with 7.5-22 kW Drives

MPN: VX5VPS3001
PPN: SCH-VX5VPS3001

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$367.20

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

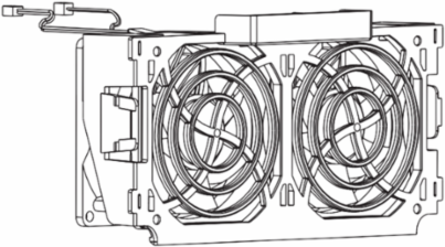

This product is a wear part for Drive Altivar 340, Altivar Process 600 and Altivar Process 900. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 7.5kw to 22kw and a rated voltage from 200V to 480V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 17.2cm (width) x 23.3cm (Length) x 7.5cm (Height) and weighs 528g. This power fan is compatible with ATV340D11N4 to D22N4, ATV630U75M3 to D11M3, ATV630D15N4 to D22N4, ATV650D15N4 to D22N4, ATV650D15N4E to D22N4E, ATV930U75M3 to D11M3, ATV930D15N4 to D22N4, ATV950D15N4 to D22N4, ATV950D15N4E to D22N4E. This kit includes 1 power fan for IP21 and IP55 drives, 1 bracket, 1 instruction sheet. IoT-ready variable speed drives for safety and heavy duty applications from 0.75 to 75kW (1 to 100Hp). Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

Important Information Attributes

Kit Composition	fan, mounting bracket, instruction sheet
Local Publishable Date	2026-03-26
Stocking Flag	N
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
Product Contributes To Saved And Avoided Emissions	No
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Accessory / Separate Part Category	cooling accessory
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8414591500

Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Service Catalog Item	Spare part
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1630
China Rohs In Scope	No
Product Kit Identifier	N
Product Or Component Type	fan
Sustainable Packaging	No
Accessory / Separate Part Type	fan kit
Package Weight(Lbs)	658.000 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Take Back	No
Eu Rohs Directive	Compliant By Exemption

Product Compatibility	variable speed drive ATV930 wall mount 11-11 kW 200...240 V, variable speed drive ATV930 wall mount 15-15 kW 380...480 V, variable speed drive ATV930 wall mount 18-18 kW 380...480 V, variable speed drive ATV930 wall mount 22-22 kW 380...480 Vvariable speed drive ATV630 wall mount 7.5-7.5 kW 200...240 V, variable speed drive ATV630 wall mount 11-11 kW 200...240 Vvariable speed drive ATV630 wall mount 15-15 kW 380...480 V, variable speed drive ATV630 wall mount 18-18 kW 380...480 V, variable speed drive ATV630 wall mount 22-22 kW 380...480 V, variable speed drive ATV930 wall mount 7.5-7.5 kW 200...240 V
Mercury Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
