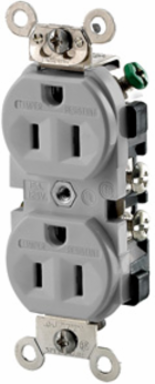

Leviton TWR15-GY Weather and Tamper-Resistant Duplex Receptacle 15 Amp 125 Volt
- MPN: TWR15-GY
- UPC: 078477392034
- PPN: LEV-TWR15-GY
CAD
$22.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Weather and Tamper-Resistant,Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Gray
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NOM | 057 |
| Warranty | 2-Year Limited |
| CSA C22.2 No. 42 | File 152105 |
|---|---|
| UL 498 | File E13399 |
Material Specifications
| Body Material | Nylon |
|---|---|
| Color | Gray |
| Ground Clips | Nickel-Plated Brass |
| Line Contacts | Nickel-Plated Brass Triple-Wipe .040 Thick |
| Product ID | Ratings permanently marked on device |
| Strap Material | Nickel Plated Brass |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination | Back or Side Wire |
| Clamp Nuts | Zinc-Plated Steel |
|---|---|
| Face Material | Nylon |
| Grounding Screw | Nickel-Plated Brass |
| Mounting Screws | Stainless Steel |
| Shutter Mechanism | Delrin® Acetal |
| Terminal Accom. | 14-10 AWG |
| Terminal Screws | Nickel-Plated Brass 10-32 |
Mechanical Specifications
| Color | Gray |
|---|---|
| Feature 2 | Weather and Tamper-Resistant |
| Grade | Heavy-Duty Industrial Specification Grade |
| Product ID | Ratings permanently marked on device |
| Terminal Accom. | 14-10 AWG |
| Termination | Back or Side Wire |
| Device Type | Duplex Receptacle Outlet |
|---|---|
| Feature 4 | Smooth Face |
| NEMA | 5-15R |
| Screw Terminal Torque | 14-18 in-lbs |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Product Features
| NOM | 057 |
|---|
Warranty
| At Rated Voltage | 1/2 HP |
|---|
| Warranty | 10-Year Limited |
|---|
Environmental Specifications
| Body Material | Nylon |
|---|---|
| Color | Gray |
| Flammability | Rated V-2 per UL 94 |
| Grounding Screw | Nickel-Plated Brass |
| Mounting Screws | Stainless Steel |
| Shutter Mechanism | Delrin® Acetal |
| Terminal Screws | Nickel-Plated Brass 10-32 |
| Clamp Nuts | Zinc-Plated Steel |
|---|---|
| Face Material | Nylon |
| Ground Clips | Nickel-Plated Brass |
| Line Contacts | Nickel-Plated Brass Triple-Wipe .040 Thick |
| Operating Temperature | -40°C to 60°C |
| Strap Material | Nickel Plated Brass |
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grounding | Self-Grounding |
| Pole | 2 |
| Voltage | 125 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Wire | 3 |
AC Horsepower Ratings
| Amperage | 15 A |
|---|---|
| Current Limiting | Full Rated Current |
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Wire | 3 |
| At Rated Voltage | 1/2 HP |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 125 VAC |
