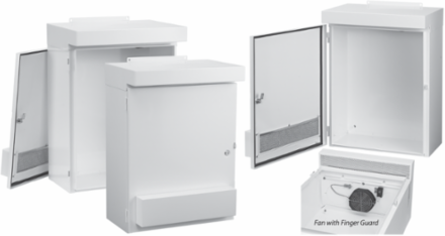

nVent Hoffman WF100LP WeatherFlo with Fan Type 3R, 67.00x36.00x16.00, White, Aluminum
- MPN: WF100LP
- UPC: 783510156848
- PPN: HOF-WF100LP
- UNSPSC: 39121324
CAD
$4912.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
WeatherFlo outdoor enclosures feature a forced-air ventilation system for cooling high-heat components. This WeatherFlo with Fan Type 3R, WF100LP item measures 67.00x36.00x16.00 inches with a material of Aluminum colored White.
Features
- White polyester powder finish with low solar absorption
- Integrated solar shield top and intake cover
- Adjustable thermostat; 70-140 F (21-60 C)
- Active cooling ventilation system with factory-installed fan and filter (115 VAC)
- Terminal power connection for fan
- Easily accessible and washable metal filter
- Gasketed door with lift-off hinge design
- Quarter-turn latch
- External enclosure mounting brackets present
- Collar studs provided to mount optional panel, sold separately
- Grounding provision on door and body
- Enclosures are finished with paint over plated surfaces
- Grounding provisions on door and body
- Gasketed door
- Enclosures finished with paint over plated surfaces
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 914
- Protection Rating
- NEMA Type 3R
- Finish
- Galvanized
- Color Code
- RAL 9003
- Mounting Holes (G x H)
- 1726 x 686
- IP Rating
- IP32
- Sub Brand
- WeatherFlo
- Size
- 67.00x36.00x16.00 in
Height (H)1,702
Depth (D)406
Product FamilyWeatherFlo
ColorSignal White
Thickness (T)2.3
Drive HorsePower100
Weight178
MaterialAluminum
NEMA Rating3R Weather-resistant, except dust
