nVent Hoffman WF10LP Enclosure, WeatherFlo Type 3R, 35x24x12 in, Steel, Signal White, Fan with Thermostat, IP32
- MPN: WF10LP
- UPC: 783510156527
- PPN: HOF-WF10LP
- UNSPSC: 39121324
CAD
$1972.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

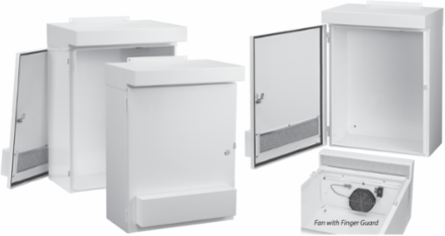

WeatherFlo outdoor enclosures feature a forced-air ventilation system for cooling high-heat components. This WeatherFlo with Fan Type 3R, WF10LP item measures 35.00x24.00x12.00 inches with a material of Steel colored White.
Features
- White polyester powder finish with low solar absorption
- Integrated solar shield top and intake cover
- Adjustable thermostat; 70-140 F (21-60 C)
- Active cooling ventilation system with factory-installed fan and filter (115 VAC)
- Terminal power connection for fan
- Easily accessible and washable metal filter
- Gasketed door with lift-off hinge design
- Quarter-turn latch
- External enclosure mounting brackets present
- Collar studs provided to mount optional panel, sold separately
- Grounding provision on door and body
- Enclosures are finished with paint over plated surfaces
- Grounding provisions on door and body
- Gasketed door
- Enclosures finished with paint over plated surfaces
Documentation & Downloads
Specifications
Additional
- Drive Horsepower
- 10 hp
- Protection Rating
- NEMA Type 3R
- Size
- 35.00 x 24.00 x 12.00 in
- Width
- 610 mm
- Mounting Holes (G x H)
- 913 x 330 mm
- Material
- Steel, Galvanized
- Color
- Signal White (RAL 9003)
- Product Family
- WeatherFlo
NEMA Rating3R
IP RatingIP32
Height889 mm
Depth305 mm
Weight110 lbs
FinishGalvanized with white polyester powder textured coating
Sub BrandWeatherFlo
