nVent Hoffman WF40LP Enclosure, WeatherFlo Type 3R, 47.00x24.00x14.00 in, Steel, White, NEMA 3R
- MPN: WF40LP
- UPC: 783510156541
- PPN: HOF-WF40LP
- UNSPSC: 39121324
CAD
$2706.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

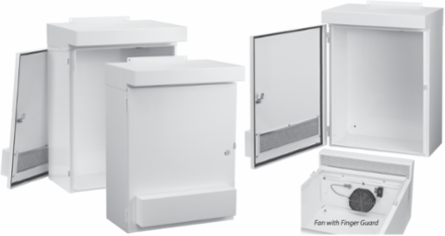

WeatherFlo outdoor enclosures feature a forced-air ventilation system for cooling high-heat components. This WeatherFlo with Fan Type 3R, WF40LP item measures 47.00x24.00x14.00 inches with a material of Steel colored White.
Features
- White polyester powder finish with low solar absorption
- Integrated solar shield top and intake cover
- Adjustable thermostat; 70-140 F (21-60 C)
- Active cooling ventilation system with factory-installed fan and filter (115 VAC)
- Terminal power connection for fan
- Easily accessible and washable metal filter
- Gasketed door with lift-off hinge design
- Quarter-turn latch
- External enclosure mounting brackets present
- Collar studs provided to mount optional panel, sold separately
- Grounding provision on door and body
- Enclosures are finished with paint over plated surfaces
- Grounding provisions on door and body
- Gasketed door
- Enclosures finished with paint over plated surfaces
Documentation & Downloads
Specifications
Additional
- Drive Horsepower
- 40 hp
- IP Rating
- IP32
- Width
- 610 mm
- Depth
- 356 mm
- Weight
- 136 lbs
- Finish
- Galvanized
- Sub Brand
- WeatherFlo
NEMA Rating3R Weather-resistant, except dust
Size47.00 x 24.00 x 14.00 in
Height1194 mm
Mounting Holes1218 x 330 mm
MaterialSteel
ColorSignal White (RAL 9003)
Product FamilyWeatherFlo
