nVent Hoffman WF75LP WeatherFlo with Fan Type 3R, 56.00x36.00x16.00, White, Aluminum

MPN: WF75LP
UPC: 783510156831
PPN: HOF-WF75LP
UNSPSC: 39121324

$3412.54

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

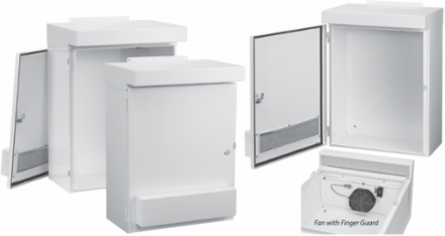

WeatherFlo outdoor enclosures feature a forced-air ventilation system for cooling high-heat components. This WeatherFlo with Fan Type 3R, WF75LP item measures 56.00x36.00x16.00 inches with a material of Aluminum colored White.

Features

White polyester powder finish with low solar absorption
Integrated solar shield top and intake cover
Adjustable thermostat; 70-140 F (21-60 C)
Active cooling ventilation system with factory-installed fan and filter (115 VAC)
Terminal power connection for fan
Easily accessible and washable metal filter
Gasketed door with lift-off hinge design
Quarter-turn latch
External enclosure mounting brackets present
Collar studs provided to mount optional panel, sold separately
Grounding provision on door and body
Enclosures are finished with paint over plated surfaces
Grounding provisions on door and body
Gasketed door
Enclosures finished with paint over plated surfaces

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Width (W)	914
Protection Rating	NEMA Type 3R
Finish	Galvanized
Color Code	RAL 9003
Mounting Holes (G x H)	1421 x 686
IP Rating	IP32
Sub Brand	WeatherFlo
Size	56.00x36.00x16.00 in

Height (H)	1,422
Depth (D)	406
Product Family	WeatherFlo
Color	Signal White
Thickness (T)	2.3
Drive HorsePower	75
Weight	154
Material	Aluminum
NEMA Rating	3R Weather-resistant, except dust
