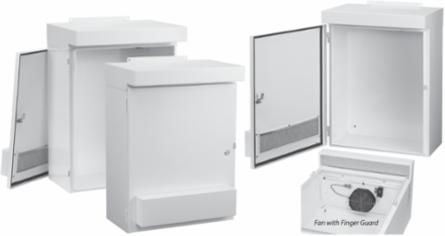

nVent Hoffman WF3LP WeatherFlo with Fan Type 3R, 29.00x24.00x12.00, White, Steel
- MPN: WF3LP
- UPC: 783510156510
- PPN: HOF-WF3LP
- UNSPSC: 39121324
CAD
$1764.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
WeatherFlo outdoor enclosures feature a forced-air ventilation system for cooling high-heat components. This WeatherFlo with Fan Type 3R, WF3LP item measures 29.00x24.00x12.00 inches with a material of Steel colored White.
Features
- White polyester powder finish with low solar absorption
- Integrated solar shield top and intake cover
- Adjustable thermostat; 70-140 F (21-60 C)
- Active cooling ventilation system with factory-installed fan and filter (115 VAC)
- Terminal power connection for fan
- Easily accessible and washable metal filter
- Gasketed door with lift-off hinge design
- Quarter-turn latch
- External enclosure mounting brackets present
- Collar studs provided to mount optional panel, sold separately
- Grounding provision on door and body
- Enclosures are finished with paint over plated surfaces
- Grounding provisions on door and body
- Gasketed door
- Enclosures finished with paint over plated surfaces
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 610
- Protection Rating
- NEMA Type 3R
- Finish
- Galvanized
- Color Code
- RAL 9003
- Mounting Holes (G x H)
- 760 x 330
- IP Rating
- IP32
- Sub Brand
- WeatherFlo
- Size
- 29.00x24.00x12.00 in
Height (H)737
Depth (D)305
Product FamilyWeatherFlo
ColorSignal White
Thickness (T)1.9
Drive HorsePower3
Weight96
MaterialSteel
NEMA Rating3R Weather-resistant, except dust
