Schneider Electric XB4BVB1 Harmony XB4 White Pilot Light, 22mm, 24V AC/DC, LED
- MPN: XB4BVB1
- PPN: SCH-XB4BVB1
CAD
$67.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

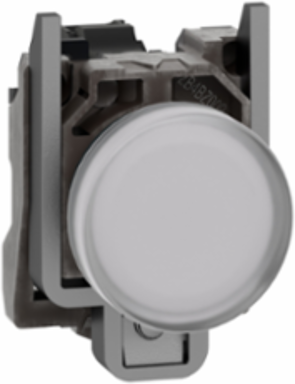

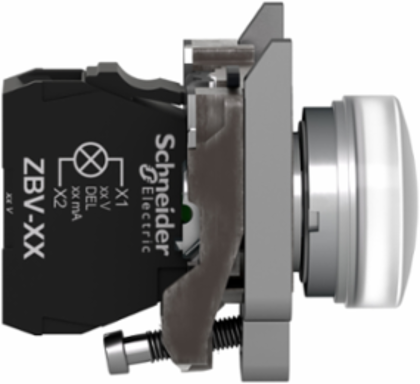

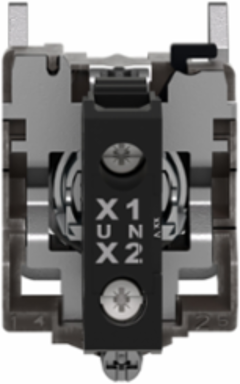

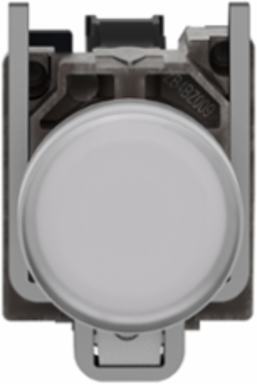

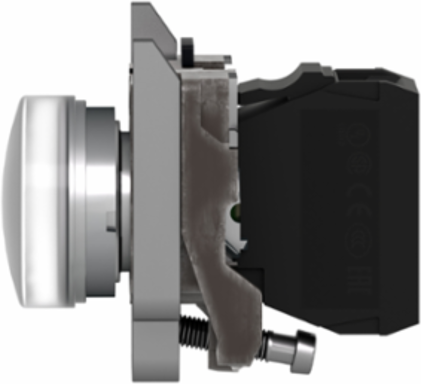

This Harmony XB4 plain lens modular white pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Features
- This complete pilot light from the trusted Harmony XB4 series is specifically designed for a standard 22 mm mounting diameter, making it a drop-in replacement or upgrade for your existing industrial control panels. The modular Zamak fixing collar ensures rapid, secure mounting that will not work loose under heavy operational vibration.
- Engineered to integrate seamlessly into standard 24V industrial control circuits, the unit operates efficiently across both 24V AC and 24V DC networks with safe operating ranges of 19.2V to 30V DC and 21.6V to 26.4V AC. Drawing a negligible 18mA of current, it minimizes overall power consumption on your secondary transformer load while staying cool to the touch.
- Featuring an integrated, steady-state universal white LED with a plain convex lens, this indicator light guarantees up to 100,000 hours of continuous service life when operated at standard ambient temperatures. This ultra-reliable, maintenance-free illumination eliminates unexpected downtime and the ongoing labor costs associated with replacing traditional filament bulbs.
- Built to survive the harshest industrial conditions, this heavy-duty unit boasts a rugged chromium-plated metal bezel alongside IP66, IP67, IP69, and IP69K ratings. It easily repels high-pressure washdowns up to 7,000,000 Pa at 55°C, making it an excellent choice for food processing plants, chemical facilities, and demanding outdoor machinery.
Documentation & Downloads
Specifications
Additional
- Voltage
- 24 V AC/DC 50/60 Hz (19.2-30 V DC, 21.6-26.4 V AC supply voltage limits)
- Insulation Voltage
- 250 V IEC 60947-1
- Shock Resistance
- 50 gn 11 ms and 30 gn 18 ms half sine wave acceleration IEC 60068-2-27
- Environmental Temperature Range
- -40 to 70 °C (-40 to 158 °F)
- Electrical Shock Protection Class
- Class I IEC 60536
- Height
- 47 mm (1.85 in)
- Depth
- 54 mm (2.13 in)
- Lens Type
- Plain lens
- Light Source Color
- White
- NEMA Degree of Protection
- NEMA 13, NEMA 4X
- Resistance To Electrostatic Discharge
- 6 kV on contact (metal parts), 8 kV in free air (insulating parts) IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Surge Withstand
- 1 kV IEC 61000-4-5
- Sustainable Offer Status
- Green Premium product
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Connections - Terminals
- Screw clamp terminals, ≤ 2 x 1.5 mm² with cable end IEC 60947-1 or 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Device Short Name
- XB4
- Range Of Product
- Harmony XB4
- Fixing Collar Material
- Zamak
- Circularity Profile
- ENVEOLI2308026EN
- Sale Per Indivisible Quantity
- 1
- Service Life
- 100000 h at rated voltage and 25 °C
- Ambient Air Temperature For Operation
- -40 to 70 °C
- Terminals Description Iso No1
- (X1-X2)PL
- Weee
- EU disposal compliant
Current Consumption18 mA
Impulse Withstand Voltage4 kV IEC 60947-1
Vibration Resistance5 gn 12-500 Hz IEC 60068-2-6
Resistance To High Pressure Washer7000000 Pa at 55 °C and 0.1 m
Mounting Diameter22 mm
Width30 mm (1.18 in)
MaterialChromium plated metal, Zamak
Light SourceUniversal LED, integral LED bulb base
ShapeRound
Ingress ProtectionIP66, IP67, IP69, IP69K IEC 60529
Electromagnetic EmissionClass B IEC 55011
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
IK Degree Of ProtectionIK06 IEC 50102
Product CertificationsUL listed, CSA
China Rohs RegulationX
Operator Additional InformationWith plain lens
Head TypeStandard
Device PresentationComplete product
Net Weight0.08 kg
Bezel MaterialChromium plated metal
Environmental DisclosureENVPEP2308026EN
Warranty18 months
Ambient Air Temperature For Storage-40 to 70 °C
Signalling TypeSteady
Important MessageAppearance changed; compatible with Universal LED blocks
