nVent Hoffman DNG2210R5 Glazed door, DNG. 2200x1000x17mm, Light Gray, Mild Steel
- MPN: DNG2210R5
- UPC: 783510626310
- PPN: HOF-DNG2210R5
- UNSPSC: 39121321
CAD
$2566.31
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

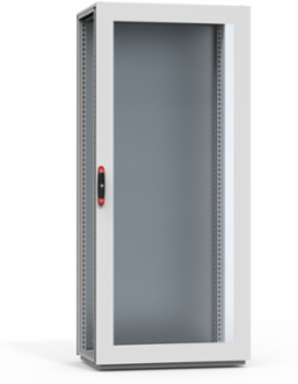

Glazed door with fitted clear safety glass to view the inside of the enclosure. This Glazed Doors, DNG, DNG1406R5 item measures 2200x1000x17mm with a material of Mild Steel, color Light Gray.
Features
- Description: Glazed door with fitted clear safety glass to view the inside of the enclosure. Equipped with double-bit 3 mm lock system and door frame. Allows all options of the locking program. Compatible with combinable and compact enclosure ranges.
- Material: Frame: 2 mm steel plate. Viewing area: 4 mm clear safety glass.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 55, TYPE 12, IK 07.
- Pack quantity: 1 piece.
- Mounting requirements: Use hinge kit DNMK01 if no door was fitted previously.
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 990 |
| Window Size | 1976 x 815 |
| Product Family | Free-Standing |
| Finish | Powder Coated |
| Color Code | RAL 7035 |
| Package Quantity | 1 |
| Enclosure Material | Mild Steel |
| Height (H) | 2,182 |
|---|---|
| Depth (D) | 17 |
| Works With | IEC |
| Material | Mild Steel |
| Color | Light Gray |
| Thickness (T) | 2 |
| Weight | 50 |
