Fluke FLK-a3003 FC Fluke a3003 FC Wireless 2000 A DC Current Clamp Meter FLK-a3003 FC
- MPN: FLK-a3003 FC
- UPC: 095969785273
- PPN: FLU-FLK-A3003FC
CAD
$1086.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

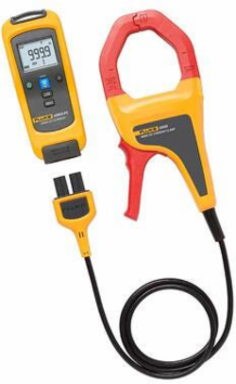

Fluke a3003 FC Wireless 2000 A DC Current Clamp Meter FLK-a3003 FC
Features
- Fluke 3000 FC Digital Multimeter
- Fluke Ti200/300/400 Infrared Camera
- PC via optional pc3000 FC Adapter
- Fluke Connect Mobile app
- TiX560 and TiX520
- Measures from 10 A to 2000 A DC
- Large jaw size (64 mm) for measuring large, high current conductors
- Use the logging function for the recording and saving up to 65,000 measurements
- Includes magnetic hanging strap
- The a3003 FC Wireless DC Current Clamp Meter is a fully functional current clamp meter that wirelessly relays measurements to other Fluke Connect® enabled master units, listed below:
- The a3003 FC Wireless 2000 A DC Current Clamp, with its extra-wide jaw, easily clamps around large conductors, typically found in mining, utility, marine, rail or other heavy manufacturing industries where large DC currents or large current carrying cables are found.
- The Fluke a3003 FC main features include:
Documentation & Downloads
Specifications
Key Specifications
| LCD w/backlight | 3 1/2 digits |
|---|---|
| Battery type | 2 AANEDA 15 AIEC LR6 |
| Memory | Record up to 65,000 readings |
| RF communication range | Open air, unobstructed: Up to 20 mObstructed, sheetrock wall: Up to 6.5 mObstructed, concrete wall or steel electrical enclosure: Up to 3.5 m |
| Storage temperature | -40°C to +60°C |
| Operative humidity | 90% at 35°C75% at 40°C45% at 50°C |
| EMC | EN 61326-1:2013 |
| Certifications | CSA C-USCEFCC: T68-FBLEIC: 6627A-FBLE |
| Jaw opening | 64 mm |
| Weight | .65 kg (1.75 lb) |
| Log rate/Interval | 1 sec minimum/adjustable by PC or front pannel |
|---|---|
| Battery life | 120 hours |
| RF communications | 2.4 GHz ISM Band |
| Operating temperature | -10°C to +50°C |
| Temperature coefficient | Add 0.1 X (specified accuracy) /°C (< 18°C or > 28°C) |
| Altitude | Operating 2,000 mStorage 12,000 m |
| Safety compliance | IEC 61010-1600 V CAT IV / 1000 V CAT III3rd edition |
| Ingress Protection (IP) rating | IP42 |
| Size (HxWxD) | 16.5 mm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in) |
