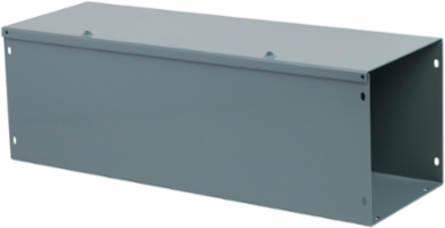

Square D LDB82 Square-Duct Wireway 8 Inch x 8 Inch 2 Ft Long Hinged Cover NEMA 1
- MPN: LDB82
- UPC: 785901200291
- PPN: SCH-LDB82
CAD
$170.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Square-Duct outdoor raintight wireway is used to protect electrical wiring against rain, sleet, and physical damage. Raintight troughs are designed for ganging meter devices, panelboards, switches, and circuit breaker enclosures. Each length is a completely enclosed section with a removable cover that has provisions for sealing. This Square-Duct raintight trough is 8 inch by 8 inch and 2 feet long. This wireway is constructed of 14 gauge galvanized steel and is rated NEMA Type 3R. Square-Duct wireway is UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|
Physical Attributes
| Trunking Length | 2 ft |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL Listed, CSA |
| Local Publishable Date | 2025-11-19 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1652 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Cover Type | hinged cover |
| Energy Efficiency Optimized | False |
| Product Or Component Type | straight length |
| Returnability | Yes |
| Sustainable Packaging | No |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 7326908688 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Scope Perimeter | Outside of Europe |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Enclosure Material | steel 14 gauge without knock-outs |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | SQUARE-Duct |
| Surface Finish | Gray polyester powder ANSI 49 |
| Trunking Dimension | 8 x 8 in |
| Package Weight(Lbs) | 8.292 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Nema Degree Of Protection | NEMA 1 |
| Packaging Without Single Use Plastic | No |
General Attributes
| Product Or Component Type | straight length |
|---|
| Range Of Product | SQUARE-Duct |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
