WPD 104 1x25+1x16/2x16+3x10 BL
Weidmuller

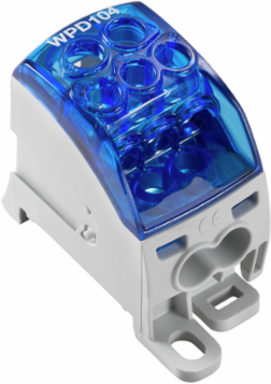

Weidmuller 2518250000 WPD 104 1x25+1x16/2x16+3x10 BL

  • MPN: 2518250000
  • PPN: WDM-2518250000

CAD

$54.01

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

W-Series, Distribution block, Rated cross-section: Terminal rail / mounting plate

Documentation & Downloads

Specifications

Approvals

Approvals
CCSAUS, CENEXATEX, IECEXCENEX, UR
UL File Number Search
E60693
ROHSConform

Dimensions And Weights

Width
31.5 mm
Height
68 mm
Depth
49 mm
Net weight
106.4 g
Width (inches)1.24 inch
Height (inches)2.677 inch
Depth (inches)1.929 inch

Csa Rating Data

Certificate number (cCSAus)
70128467

Additional Technical Data

Installation advice
Terminal rail / mounting plate
Type of mountingSnap-on

Material Data

Material
Wemid
UL 94 flammability rating
V-0
Colourblue

Classifications

ETIM 6.0
EC000897
eClass 9.0
27-14-11-20
eClass 10.0
27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20

Product Information

Product information
Power distribution block (Bus Bar) also usable for distribution of neutral conductor and function earth.

Environmental Product Compliance

REACH SVHC
Lead 7439-92-1

System Specifications

Version
Screw connection
Number of levels1

Temperatures

Storage temperature, max.
40 °C
Storage temperature
10 °C...40 °C
Continuous operating temp., max.
130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C

Rating Data

Rated AC voltage
1,000 V AC
Rated current
101 A
Standards
IEC 60947-7-1, UL 1059
Rated DC voltage1,000 V DC
Current at maximum wires101 A

Ul Rating Data

Certificate No. (UR)
E60693
