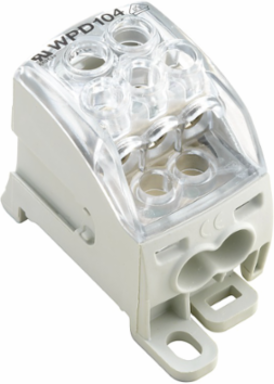

Weidmuller 1562000000 WPD 104 1x25+1x16/2x16+3x10 GY

WPD 104 1x25+1x16/2x16+3x10 GY
WPD 104 1x25+1x16/2x16+3x10 GY
  • MPN: 1562000000
  • PPN: WDM-1562000000

Spec sheet

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$46.13/ EA

Description

W-Series, Distribution block, Rated cross-section: Screw connection, Terminal rail / mounting plate

Specifications

Approvals

Approvals
CCSAUS, CENEXATEX, EAC, IECEXCENEX, UR, VDE
UL File Number Search
E60693
ROHSConform

Dimensions And Weights

Width
31.5 mm
Height
68 mm
Depth
49 mm
Net weight
96 g
Width (inches)1.24 inch
Height (inches)2.677 inch
Depth (inches)1.929 inch

Csa Rating Data

Certificate number (cCSAus)
70128467

Additional Technical Data

Installation advice
Terminal rail / mounting plate
Type of mounting
Snap-on
Open sidesclosed

Material Data

Material
Wemid
UL 94 flammability rating
V-0
Colourgrey

Safety Note

Safety notice
Safety Information

Classifications

ETIM 6.0
EC000897
eClass 9.0
27-14-11-20
eClass 10.0
27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20

Product Information

Product information
Power distribution block (Bus Bar) also usable for distribution of neutral conductor and function earth.

Environmental Product Compliance

REACH SVHC
Lead 7439-92-1

System Specifications

Version
Screw connection
Number of potentials
1
Number of clamping points per level
2
Levels cross-connected internally
Yes
N-function
Yes
PEN function
No
End cover plate requiredNo
Number of levels1
Number of potentials per tier1
PE connectionNo
PE functionNo

Temperatures

Storage temperature, max.
40 °C
Storage temperature
10 °C...40 °C
Continuous operating temp., max.
130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C

Rating Data

Rated AC voltage
1,000 V AC
Rated current
101 A
Standards
IEC 60947-7-1, UL 1059
Rated DC voltage1,000 V DC
Current at maximum wires101 A

Conductors For Clamping (Rated Connection)

Connection direction
on side
Type of connectionScrew connection

Ul Rating Data

Certificate No. (UR)
E60693
