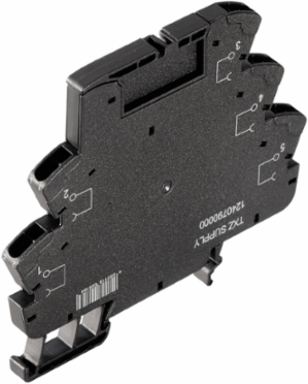

Weidmuller 2618940000 TXP SUPPLY
- MPN: 2618940000
- PPN: WDM-2618940000
CAD
$17.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TERMSERIES, Supply module, Number of contacts: 5, Continuous current: 10 A, PUSH IN with actuator
Documentation & Downloads
Specifications
General Data
| Rail | TS 35 |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | black |
|---|
Load Side
| Continuous current | 10 A |
|---|
Dimensions And Weights
| Width | 6.4 mm |
|---|---|
| Height | 89.4 mm |
| Depth | 81.5 mm |
| Net weight | 0 g |
| Width (inches) | 0.252 inch |
|---|---|
| Height (inches) | 3.52 inch |
| Depth (inches) | 3.209 inch |
Connection Data
| Wire connection method | PUSH IN with actuator |
|---|---|
| Clamping range, rated connection | 1.5 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire cross-section, solid, max. | 2.5 mm² |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire cross-section, finely stranded, max. (AWG) | AWG 14 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 1.5 mm² |
| Twin wire-end ferrules, max. | 1 mm² |
| Stripping length, rated connection | 8 mm |
|---|---|
| Clamping range, min. | 0.14 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire cross-section, solid, min. | 0.14 mm² |
| Wire connection cross-section, finely stranded, min. | 0.14 mm² |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.15 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0.15 mm² |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Blade size | 0.4 x 2.0 mm |
Contact Data
| Contact type | 5 |
|---|
Classifications
| ETIM 6.0 | EC002586 |
|---|---|
| eClass 9.1 | 27-37-16-92 |
| ETIM 7.0 | EC002586 |
|---|---|
| eClass 10.0 | 27-37-16-92 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Rated voltage | 300 V |
|---|---|
| Surge voltage category | III |
| Impulse withstand voltage | 6 kV (1.2/50 µs) |
| Pollution severity | 2 |
|---|---|
| Dielectric strength to mounting rail | 4 kVeff / 1 Min. |
| Protection degree | IP20 |
Temperatures
| Humidity | 5-95% relative humidity, Tu = 40°C, without condensation |
|---|---|
| Operating temperature, min. | -25 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -25 °C...60 °C |
