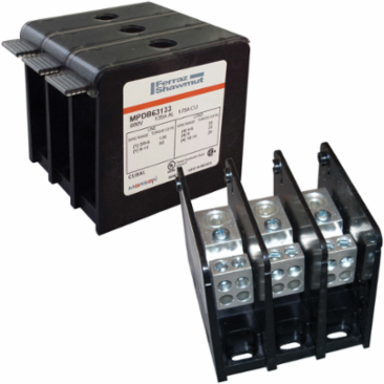

Mersen MPDB67623 Next Generation Power Distribution Block, 3-Pole, 1000V, 310A, 350-#6 In/ #10-#14 Out
Mersen MPDB67623 Next Generation Power Distribution Block, 3-Pole, 1000V, 310A, 350-#6 In/ #10-#14 Out
- MPN: MPDB67623
- UPC: 782001452285
- PPN: FER-MPDB67623
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$292.17/ EA
Description
The Next Generation Power Distribution Block (PDB). Mersen power distribution blocks provide a safe and easy method of splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap-off points. All blocks are UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code®. PDB options include single or dual conductor primary inputs and up to 30 secondary outputs. Specialty blocks are available allowing for up to 7 primary inputs. The MPDB series is offered in three size categories: miniature (MPDB62 and MPDB63 series), intermediate (MPDB66 and MPDB67 series), and large (MPDB68 and MPDB69 series), in both aluminum and copper.
Specifications
Specifications
- Rated voltage AC UL
- 1000 V
- Frequency (Hz)
- 50/60 Hz
- Ampere Rating (CU)
- 310 A
- AC or DC
- AC/DC
- Short Circuit Rating (Class G)
- 100 kA with 60A Fuse
- Short Circuit Rating (Class L)
- 100 kA with 400A Fuse
- Short Circuit Rating (Class RK5)
- 100 kA with 100A Fuse
- Short Circuit Rating (Class T)
- 100 kA with 400A Fuse
- Connector Material
- Tin-plated Aluminum
- Number of Openings per Pole (Secondary)
- 15
- Connector Type (Secondary)
- Box
- Hex/Screw Size & Type (Secondary)
- 8-32 (.164) x .25
- Hole Diameter (Secondary)
- 0.14 in
- Torque Rating (Secondary)
- #10-#14 15
- Wire Range (Secondary)
- #10-#14
- Body/Insulating Material
- Glass Filled Polycarbonate
- Length
- 3.08 in
- Weight
- 1.6 lb
Rated voltage DC UL1000 V
Ampere Rating (AL)250 A
ROHS CompliantYes
Short Circuit Rating (Class CC)100 kA with 30A Fuse
Short Circuit Rating (Class J)100 kA with 400A Fuse
Short Circuit Rating (Class RK1)100 kA with 200A Fuse
Short Circuit Rating (Standalone)10 kA
Number of Poles3-Pole
Number of Openings per Pole (Primary)1
Connector Type (Primary)Box
Hex/Screw Size & Type (Primary)11/16-16 x .88
Hole Diameter (Primary)0.75 in
Torque Rating (Primary)350-#6 275
Wire Range (Primary)350-#6
Installation MountingDirect Screw Mount
Width5.28 in
Height3.25 in
