Brady WRAP-1-472 WRAPTOR Series Polyimide Labels, 0.75" H x 0.5" W, Roll of 6800 Labels
- MPN: WRAP-1-472
- UPC: 662820652991
- PPN: BRD-WRAP-1-472
- UNSPSC: 55121612
CAD
$1059.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

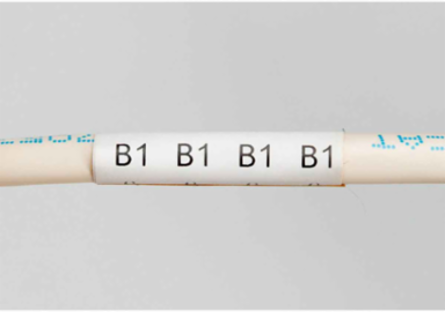

Flame Retardant Wire Wraps (B-472) are ideal for cable and wire bundle applications and label applications where self-extinguishing properties are required.
Features
- Polyimide material specifically designed to self-extinguish and prevent flames from propagating
- Matte finish material with permanent acrylic adhesive can be thermal transfer printed or dot matrix printed
- Service temperature of -40°F to 212°F (-40°C to 100°C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- White
- Diagram
- Icon 3 (triangle)
- Finish
- Matte
- Industry
- Aerospace; Automotive; Biotechnology; Defense; Electrical; Electronics; ICT; Manufacturing; Mass transit; Pharmaceutical; Voice & data communication
- Markers per Roll
- 6800
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- Wraptor A6500
- Quantity per Row
- 1
- Ribbon Series
- R2000; R4300; R6200
- Software Compatibility
- Brady Workstation, LabelMark
- Total Qty per Pack
- 6800 Piece(s) / Roll
- Trade Name
- UltraTemp®
- Brady Material Number
- B-472
- Material
- Polyimide
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant
- Dimensions
- 0.75 in H x 0.5 in W
- Dimensions 2
- 0.75 in H x 0.5 in W
- Height (mm/cm/m)
- 19.05 mm
- Maximum Service Temperature °C
- 100 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.32 in
- Maximum Wire Gauge
- 18 gauge
- Minimum Service Temperature °F
- -94 °F
- Minimum Wire Diameter (mm/cm/m)
- 3.30 mm
- Printable Area Dimensions
- 0.375 in H x 0.5 in W
- Printable Area Height (in/ft/yd)
- 0.375 in
- Printable Area Width (in/ft/yd)
- 0.5 in
- Sign Size-General
- 0.75 in x 0.5 in
- Thickness (in/ft/yd)
- 0.0032 in
- Vertical Repeat
- 0.875 in
- Web Width (mm/cm/m)
- 20.07 mm
- Width (mm/cm/m)
- 12.7 mm
- Wire Gauge Range
- 22 gauge to 18 gauge
Brand NameBrady®
Compatible Surface TypesGeneral
Enables Industry ComplianceASTM B 117; ASTM D 1000; ASTM D 2979; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AS-81531
For Use with PrinterWRAPTOR™ Wire Marking System
Label/Media FormatRoll
Primary Noun, Basic FunctionLabel
Printable SidesSingle-Side Printable
Printer CompatibilityWraptor™ A6500 Wrap Printer Applicator
Quantity per Roll6800
Recommended RibbonR4311
ShapeRectangle
Suggested Ribbon SeriesR4300; R6200
Total Quantity6800
Adhesive TypePermanent Acrylic
Label PropertiesSelf Laminating Labels & Wraps
Material PropertiesFlame-retardant
SAP B-NumberB-472
Dimensions (Metric)12.70 mm W x 19.05 mm H
Height (in/ft/yd)0.75 in
Label/Tape Size (in/ft/yd)0.75 in H x 0.5 in W
Maximum Service Temperature °F212 °F
Maximum Wire Diameter (mm/cm/m)8.13 mm
Minimum Service Temperature °C-70 °C
Minimum Wire Diameter (in/ft/yd)0.13 in
Minimum Wire Gauge22 gauge
Printable Area Dimensions (Metric)9.5 mm H x 12.70 mm W
Printable Area Height (mm/cm/m)9.5 mm
Printable Area Width (mm/cm/m)12.70 mm
Size - Width (mm)12.70 mm
Thickness (mm/cm/m)0.081 mm
Vertical Repeat (mm)22.22 mm
Width (in/ft/yd)0.5 in
Wire Diameter Range0.13 in to 0.32 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
