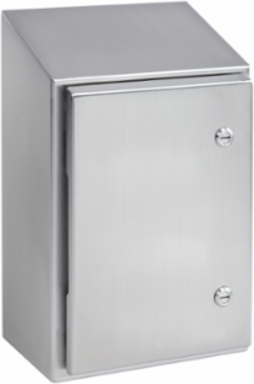

nVent Hoffman WS363612SS WaterShed Wallmount Sloped Top 1/4-Turn Latch Type 4X, 36x36x12, Brushed, SS 304
- MPN: WS363612SS
- UPC: 783510131173
- PPN: HOF-WS363612SS
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
WaterShed designed for sanitary washdown environments, particularly food and beverage manufacturing. This WaterShed Wallmount Sloped Top 1/4-Turn Latch Type 4X, WS363612SS item measures 36x36x12 in. with a material of SS 304, Brushed.
Features
- Seams continuously welded and ground smooth
- Smooth Type 304 stainless steel lift-off bullet-style hinges
- Hinges are shielded by door
- Hinged side of door has provisions to allow direct flushing of hinge area
- 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
- 97-degree door opening
- Door edges are sloped 20-degrees at top and bottom edges to facilitate runoff
- Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
- Stainless steel quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Enclosures with 'A' dimension of 16.00 in. (406mm) or greater utilize NEMA style panels; models with 'A' dimension less than 16.00 in. (406mm) utilize Junction Box style panels
- Mounting holes in back of body for direct mounting optional stand-off kit or mounting bracket kit
- Furnished hardware kit consists of panel mounting fasteners grounding hardware and sealing washers for wall-mounting hole
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 914
- Protection Rating
- NEMA Type 12
- Finish
- Brushed #4
- Latch Quantity
- 5
- Weight
- 105
- Material
- Stainless Steel
- NEMA Rating
- 4X Watertight, corrosion-resistant
Height (H)914
Depth (D)305
Product FamilyWaterShed
Thickness (T)2
IP RatingIP66
Sub BrandWaterShed
Size36.00x36.00x12.00 in
