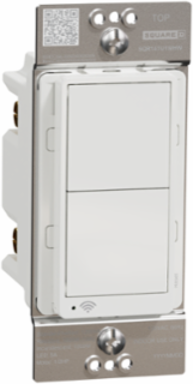

Schneider Electric SQR141U1WHW X Series 15A WiFi Energy Monitoring Rocker Switch 3-Way 120V
- MPN: SQR141U1WHW
- UPC: 785901691846
- PPN: SCH-SQR141U1WHW
CAD
$52.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
X Series residential wiring devices 4-way switch offers an array of new features, such as flush mounting, easy installation, and connectivity with wifi. The rated operational voltage of this switch is 120V and 277V. The mechanism with fixing frame belongs to X Series aesthetic group. Sold in 10 pieces, the connection are screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. This device is compatible with the rocker plate and the cover plates of the XD series, so that the personalization of your interior design with many styles of décor is possible. This switch has a width of 37 mm, a height of 103 mm and a depth of 37 mm. The UL certified switch without the rocker plate allows for use during rough-in phase. It supports upgrading the color or design of the switch after initial installation without removing the switch from the wall. By satisfying the UL 20 standard, this switch is cUlus certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 45 mm |
|---|
Communications & Management Attributes
| Communication Network Type | Wi-FiWi-Fi (2.4-2.4 GHz), 10 mW at < 50 m |
|---|
Physical Attributes
| Color | White |
|---|---|
| Main Color Tint | white |
| Color Tint | white |
|---|---|
| Signalling Color | blue |
Important Information Attributes
| Persona Type Ids | EUA, LC, SC |
|---|---|
| Local Data Status | Publishable |
| Pre Comm Date | 2020-12-18 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Actuator | rocker |
| Device Application | control |
| Local Signalling | 1 LED |
| Mobile App Name | Wiser Home |
| Network Frequency | 60 Hz |
| Number Of Rocker | 1 |
| Product Or Component Type | connected switch |
| Returnability | Yes |
| Surface Finish | Matte |
| Switch Function | 3-way |
| Color Tint | white |
| Signalling Color | blue |
| Width Nominal | 44 mm |
| [Ue] Rated Operational Voltage | 120 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109170 |
| Persona Type Names | Consumer, Contractor, Electrician |
|---|---|
| Local Publishable Date | 2026-07-21 |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Aesthetic Name | X Series |
| Energy Efficiency Optimized | False |
| Material | plastic: strapmetal: fixing frame |
| Mounting Mode | by screws |
| Network Type | AC |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | Square D X Series |
| Signalling Function | status |
| Sustainable Packaging | No |
| Technology Type | electronic |
| Main Color Tint | white |
| Height Nominal | 104 mm |
| [Ie] Rated Operational Current Ac | 15 A |

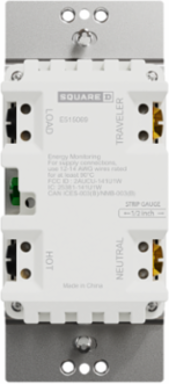

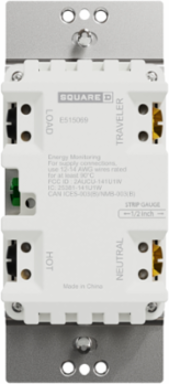

| Connections - Terminals | phase and neutral 4 screw terminal 14 AWG...12 AWG) copperearth 1 screw terminal copper |
| Package Weight(Lbs) | 175 g |
| Warranty (In Months) | 24 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
General Attributes
| Product Or Component Type | connected switch |
|---|
ETIM
| ETIM 8 | EC001590 |
|---|
| ETIM 9 | EC001590 |
|---|
Contractual Warranty Attributes
| Warranty Period | 2 years |
|---|
| Warranty | 2 years |
|---|
Overview Attributes
| Device Presentation | mechanism with fixing frame |
|---|
