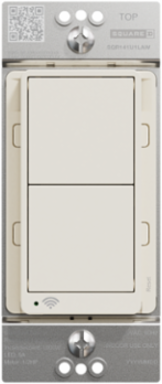

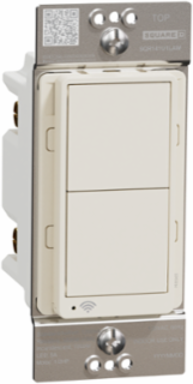

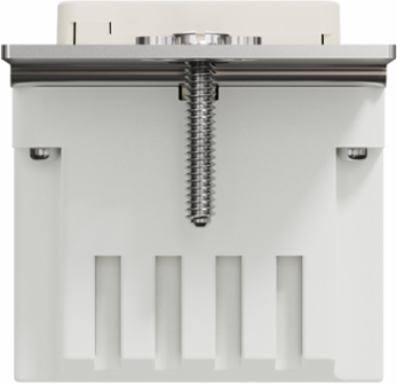

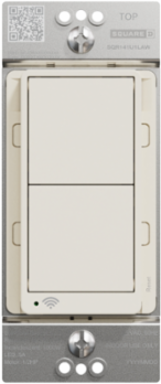

Schneider Electric SQR141U1LAW X Series 15A WiFi Energy Monitoring Rocker Switch 1 Rocker, Light Almond

MPN: SQR141U1LAW
UPC: 785901691440
PPN: SCH-SQR141U1LAW
UNSPSC: 39122226

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$52.16

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric SQR141U1LAW X Series Rocker Switch provides an innovative solution for energy management within your automation and control systems. With its built-in WiFi capabilities, this 15A switch allows for real-time energy monitoring, helping you track power consumption efficiently. Its sleek light almond design not only blends seamlessly with various home decors but also offers user-friendly functionality through intuitive rocker operation. Ideal for modern smart homes, this device enhances your control over electrical devices while promoting energy sustainability.

Features

Wi-Fi switch connects directly to the home network - no Hub required
Schedules are stored in the device and will execute even if the internet is down

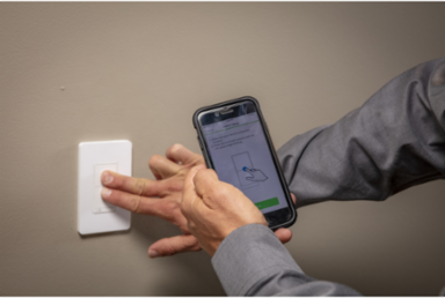

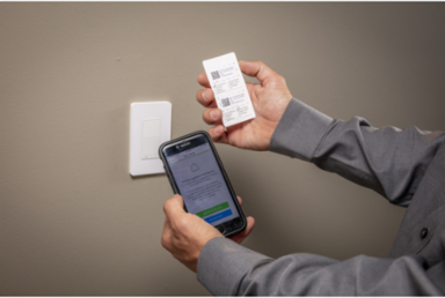

Control remotely via Wi-Fi with Wiser Home app
Sold individually
Wall plate required, sold separately

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China
Depth	45 mm

Actuator	rocker

Communications & Management Attributes

Communication Network Type	Wi-FiWi-Fi (2.4-2.4 GHz), 10 mW at < 50 m

Complementary Attributes

Ie Rated Operational Current Ac	15 A

Ue Rated Operational Voltage	120 V

Important Information Attributes

Persona Type Ids	EU, EUA, LC, SC
Local Data Status	Publishable
Pre Comm Date	2020-12-18
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2532
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Residential
Actuator	rocker
Device Application	control
Local Signalling	1 LED
Mobile App Name	Wiser Home
Network Frequency	60 Hz
Number Of Rocker	1
Product Or Component Type	connected switch
Returnability	Yes
Surface Finish	Matte
Switch Function	3-way
Color Tint	light almond
Signalling Color	blue
Height Nominal	104 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	24

Persona Type Names	End User, Consumer, Contractor, Electrician
Local Publishable Date	2026-08-19
Return Indicator	Y
Weee Product Category	5
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	RESIDENTIAL
Product Kit Identifier	N
Aesthetic Name	X Series
Energy Efficiency Optimized	False
Material	plastic: strapmetal: fixing frame

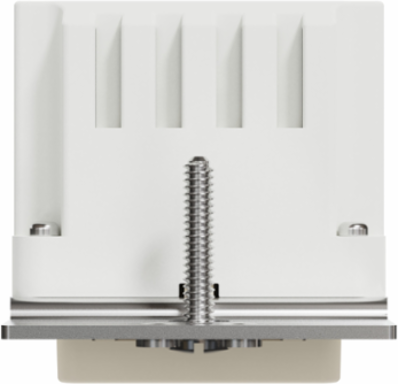

Mounting Mode	by screws
Network Type	AC
Product Availability	Stock - Normally stocked in distribution facility
Range	Square D X Series
Signalling Function	status
Sustainable Packaging	No
Technology Type	electronic
Main Color Tint	light almond

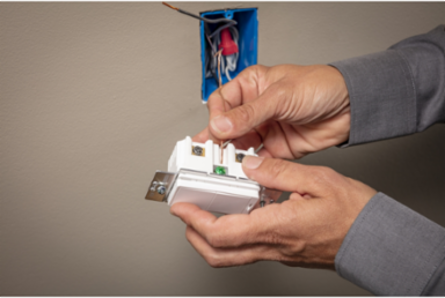

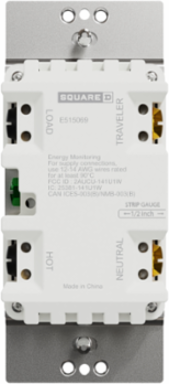

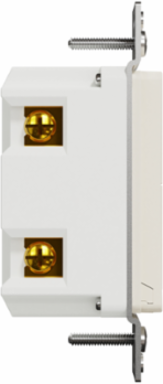

Connections Terminals	phase and neutral 4 screw terminal 14 AWG...12 AWG) copperearth 1 screw terminal copper
Width Nominal	44 mm
Customs Code	8537109170

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes

Reach Regulation	Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
