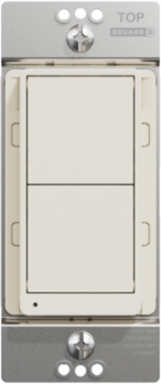

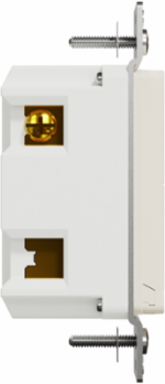

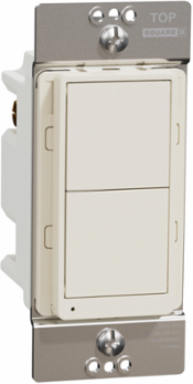

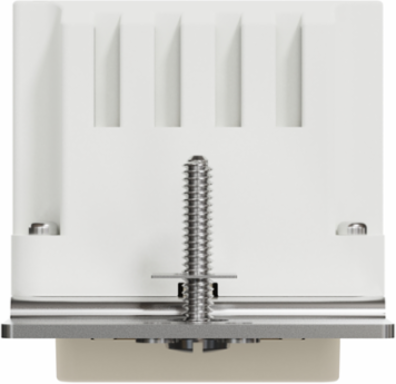

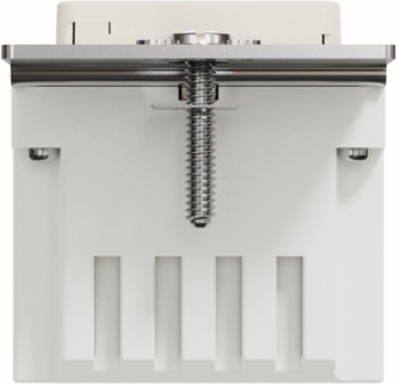

Schneider Electric SQR50101LAZ X Series 15A Z-Wave Plus Rocker Switch, 120V, 44mm Width, Light Almond
- MPN: SQR50101LAZ
- UPC: 785901544517
- PPN: SCH-SQR50101LAZ
CAD
$90.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
X Series residential wiring devices Z-Wave Plus switch offers an array of new features, such as flush mounting, easy installation, and connectivity. Thanks to its Z-Wave Plus connectivity which is compatible with many home automation systems, the lighting can be controlled remotely. The rated operational voltage of this switch is 120V. The mechanism with fixing frame belongs to X Series aesthetic group. The connection are screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. The switch is made of metal and plastic making it resistant and durable. This switch has a light almond frame. It features protective painted surface treatment. This switch benefits from an elegant matt finishing, constituting an added-value for your interior design. This switch has a width of 44 mm, a height of 103 mm and a depth of 45 mm. By offering a solution compatible with several types of installations, this switch is UL 773A and cUlus certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 45 mm |
|---|
Communications & Management Attributes
| Communication Network Type | Z-Wave Plus |
|---|
Physical Attributes
| Color | light almond, light almond |
|---|---|
| Main Color Tint | light almond |
| Color Tint | light almond |
|---|---|
| Signalling Color | blue |
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Pre Comm Announcement Date | 2020-10-30 |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Persona Type Ids | LC |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Aesthetic Name | X Series |
| Energy Efficiency Optimized | False |
| Market Segment | residential |
| Mounting Mode | by screws |
| Network Type | AC |
| Number Of Rocker | 1 |
| Product Or Component Type | connected switch |
| Returnability | Yes |
| Surface Finish | Matte |
| Targeted Channel | distributor |
| Color Tint | light almond |
| Signalling Color | blue |
| Width Nominal | 44 mm |
| [Ie] Rated Operational Current Ac | 15 A |

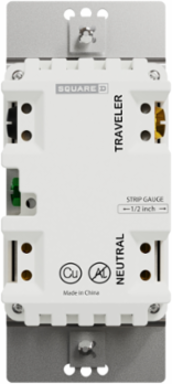

| Connections - Terminals | phase and neutral 2 screw terminal copperearth 1 screw terminal copper |
| Package Weight(Lbs) | 161 g |
| Warranty (In Months) | 24 |
| Local Publishable Date | 2026-06-23 |
|---|---|
| Pre Comm Date | 2020-12-18 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Persona Type Names | Contractor |
| Tier | 3 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Actuator | rocker |
| Device Application | control |
| Local Signalling | 1 LED |
| Material | plastic: strapmetal: fixing frame |
| Network Frequency | 60 Hz |
| Number Of Poles | 1 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | Square D X Series |
| Signalling Function | status |
| Sustainable Packaging | No |
| Technology Type | electronic |
| Main Color Tint | light almond |
| Height Nominal | 103 mm |
| Certificate Agency | cULus |
| [Ue] Rated Operational Voltage | 120 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509035 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | connected switch |
|---|
ETIM
| ETIM 8 | EC001590 |
|---|
| ETIM 9 | EC001590 |
|---|
Contractual Warranty Attributes
| Warranty Period | 2 years |
|---|
| Warranty | 2 years |
|---|
Overview Attributes
| Device Presentation | mechanism with fixing frame |
|---|
