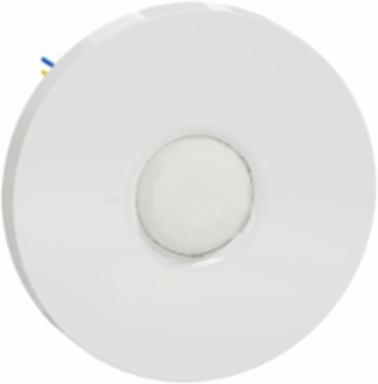

Schneider Electric SQR73102WH X Series 15A PIR Ceiling Mount Sensor, 360 Detection, White

MPN: SQR73102WH
UPC: 785901549246
PPN: SCH-SQR73102WH
UNSPSC: 39122236

$55.16

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

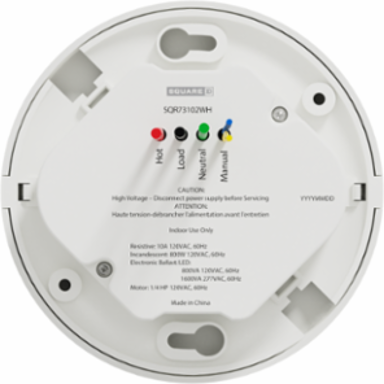

The Square D X Series 10A Ceiling Mount PIR Occupancy Sensor allows for automatic recognition and precise detection of the environment. The rated operational voltage of this sensor is 120V. This sensor is surface mounted and provides 360° detection up to 1,200 square feet, making it suitable for larger, open spaces. The connection are screw terminal. However, an independent light sensor will not turn on lights if ambient light in room is sufficient. When movement is not detected, and the sensor times out, any movement within the next 30 seconds will turn the lights back ON. It offers 360° field-of-view from Passive Infrared Sensor. This sensor has a width of 115 mm and a height of 115 mm. By satisfying the ICES-003 and UL 1917 standards, this sensor is cUlus certified. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 10A. The dimensions are (W) 115mm x (H) 115mm. This device is compliant with cULus certification. Its mercury free and heavy metal free.

Features

X Series 10A Single Pole 360° Ceiling mount PIR Occupancy sensor
Detects movement up to 1,200 square feet, making it suitable for larger open spaces
Independent light sensor won’t turn lights on if ambient light in room is sufficient
Individual packaging

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

Depth	35.3 mm

Complementary Attributes

Ue Rated Operational Voltage	120 V, 277 V

Ie Rated Operational Current Ac	10 A

Important Information Attributes

Persona Type Ids	EUA, LC, SC
Sensor Type	PIR, light level sensor
Local Data Status	Publishable
Pre Comm Announcement Date	2020-10-30
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2532
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Residential
Aesthetic Name	X Series
Energy Efficiency Optimized	False
Material	plastic: housing
Network Frequency	60 Hz
Number Of Gangs	1 gang
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	1 piece
Returnability	Yes
Sustainable Packaging	No
Targeted Channel	distributor
Height Nominal	115 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	24

Persona Type Names	Consumer, Contractor, Electrician
Certificate Agency	cULus, ICES-003
Local Publishable Date	2026-08-19
Pre Comm Date	2020-12-18
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	RESIDENTIAL
Product Kit Identifier	N
Device Application	control
Market Segment	residential
Mounting Support	ceiling
Network Type	AC
Number Of Poles	1
Product Or Component Type	sensor
Range	Square D X Series
Surface Finish	Matte
Switch Function	1-way
Main Color Tint	white
Width Nominal	115 mm
Customs Code	8536507000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
