Square D SQR55241LA X Series 20A 125V USB A/A Duplex Outlet, 4.8A, Tamper Resistant, Light Almond
Square D SQR55241LA X Series 20A 125V USB A/A Duplex Outlet, 4.8A, Tamper Resistant, Light Almond
- MPN: SQR55241LA
- UPC: 785901547136
- PPN: SCH-SQR55241LA
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$61.78/ EA
Description

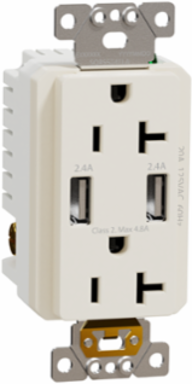

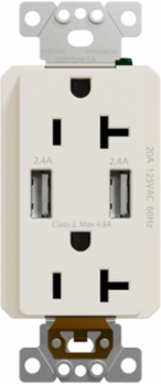

X Series residential wiring devices USB charger/receptable offers an array of new features, such as flush mounting, easy installation, and connectivity. Users can plug 2 USB cables and 2 power cords at the same time for applications where power density is important. This device supports 5 volts DC and up to 2.4A per USB A port (4.8A total) to quickly charge modern electronic devices. This outlet socket has a 20A current rating. The mechanism with fixing frame belongs to X Series aesthetic group. Sold in 1 piece, its mounting mode is made by screws. It is made of metal and plastic making it resistant and durable. This USB receptacle has a light almond frame. It is tamper resistant with invisible black shutters and it features protective painted surface treatment. This USB receptacle benefits from an elegant matt finishing, constituting an added-value for your interior design. It has a width of 44mm, a height of 103mm and a depth of 45mm. By satisfying the UL 1310 and the UL 498 standard, this USB receptacle is cUlus certified.
Specifications
Environment
- Product Certifications
- cULus
StandardsUL 498 || UL 1310 || FCC part 15 class B || ICES-003
Contractual warranty
- Warranty
- 2 years
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2011022_V1
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI2011022_V1
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
Complementary
- Network Frequency
- 60 Hz
- Number Of Modules
- 1
- Number Of Gangs
- 1 gang
- Surface Finish
- matt
- Connections - Terminals
- phase and neutral 2 screw terminal || earth 1 screw terminal
- Mounting Mode
- by screws
- Integrated Connection Type
- 2 socket-outlet 20 A || 2 USB type A 2.4 A
- Quantity Per Set
- 1 piece
- Width
- 44 mm
- Device Application
- power supply
- Outlet Poles Configuration
- 2 x 2P + E
Height103 mm
Device Mountingflush
Network TypeAC
Socket Additional Informationtamper resistant
Device Presentationmechanism with fixing frame
Earth Circuitself earthing
Materialplastic: strap || metal: fixing frame
Outlet StandardNEMA
Depth44 mm
[Ue] Rated Operational Voltage125 V
Specifications
- Aesthetic Name
- X Series
- Range
- Square D X Series
Product Or Component TypeUSB charger + socket-outlet
Colourlight almond
