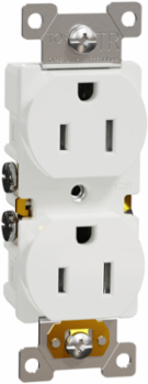

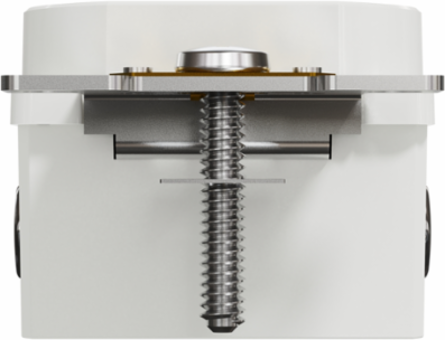

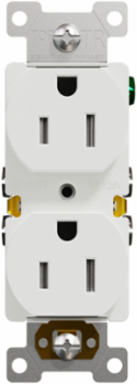

Schneider Electric SQR42101WH X Series 15A 125V Tamper Resistant Duplex Outlet 1 Gang, White
- MPN: SQR42101WH
- UPC: 785901535270
- PPN: SCH-SQR42101WH
CAD
$2.83
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric SQR42101WH X Series duplex outlet blends safety and functionality with its tamper-resistant design, making it ideal for both residential and commercial environments. Rated at 15 amps and 125 volts, this outlet ensures reliable electricity distribution while protecting against accidental contact with the terminals. Encased in a clean white finish, it seamlessly integrates into any decor, providing an elegant yet practical solution for your power needs. Whether upgrading an electrical system or installing in new projects, this single gang outlet offers peace of mind without compromising on style.
Features
- Equipped with built-in, discrete tamper-resistant shutters, this duplex receptacle blocks the insertion of foreign objects like hairpins or keys while allowing standard two-prong and three-prong plugs to slide in effortlessly.

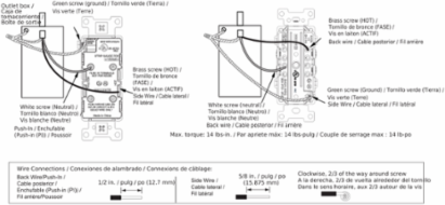

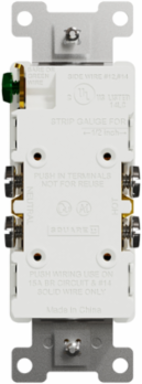

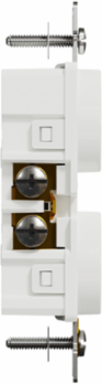

- Featuring an advanced dual-connection layout, this outlet offers both 4 side-screw terminals for traditional 12-14 AWG wiring and 4 quick push-in terminations for solid 14 AWG copper wire. Combined with an integrated self-grounding clip that establishes an automatic connection to grounded metal boxes, it eliminates the need for manual bonding wires and cuts your device installation time in half.
- Part of the sleek Square D X Series, this receptacle features a flush-facing geometry and a premium matte white finish that resists fingerprints and smudges better than standard glossy plastic. Designed to be paired with screwless snap-on wall plates, it hides mounting screws completely to create a clean, minimalist profile that elevates the visual appeal of living rooms, bedrooms, and offices.
- This standard residential-grade duplex outlet is rated for 15 Amps and 120 Volts at 60 Hz, providing stable and efficient power delivery for standard household devices such as lamps, laptops, televisions, and kitchen appliances. The internal contacts are engineered with high-grade copper alloy to minimize heat generation and maintain tight plug retention, preventing annoying loose cords and intermittent power drops over years of continuous use.

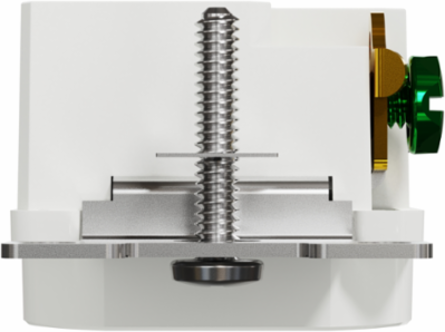

- Built with a robust metal fixing frame overlaid with a tough thermoplastic strap, this unit handles high torque from mounting screws without warping or breaking. The impact-resistant construction absorbs the stress of heavy plugs being shoved in or pulled out, ensuring the receptacle remains perfectly flush and securely anchored inside the wall over its lifespan.
- Proudly carrying the Schneider Electric Green Premium eco-label, this socket-outlet is completely mercury-free, heavy-metal-free, and fully RoHS compliant. This certification guarantees your project utilizes non-toxic, sustainable materials that protect your household environment while meeting stringent eco-design standards.
Documentation & Downloads
Specifications
Additional
| Voltage | 125 V |
|---|---|
| Network Frequency | 60 Hz |
| Number of Gangs | 1 gang |
| Device Mounting | Flush |
| Width | 37 mm (1.46 in) |
| Depth | 27 mm (1.06 in) |
| Connections - Terminals | Phase and neutral 4 screw terminals AWG 14 12 copper; earth 1 screw terminal copper; also push-in termination for phase and neutral AWG 14 solid copper |
| Surface Finish | Matte |
| Compliance | cULus, UL 498, NEMA 5-15R |
| Toxic Heavy Metal Free | Yes |
| REACH Free of SVHC | Yes |
| Range | Square D X Series |
| Amperage | 15 A |
|---|---|
| Socket Number | 2 |
| Number of Modules | 1 |
| Mounting Mode | By screws |
| Height | 103 mm (4.06 in) |
| Material | Plastic (strap), Metal (fixing frame) |
| Earth Circuit | Self earthing |
| Socket Additional Information | Tamper resistant |
| RoHS Compliance | Compliant |
| Mercury Free | Yes |
| Country of Origin | China |
| Warranty | 2 years |
