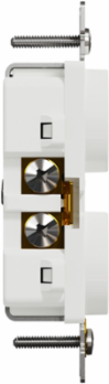

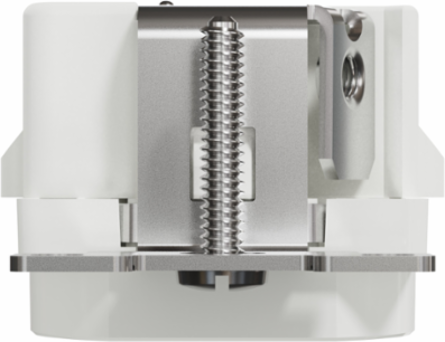

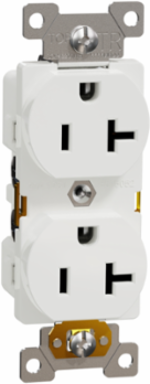

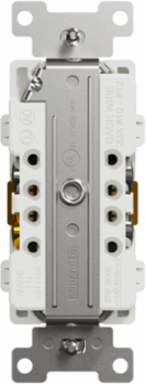

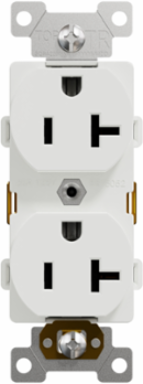

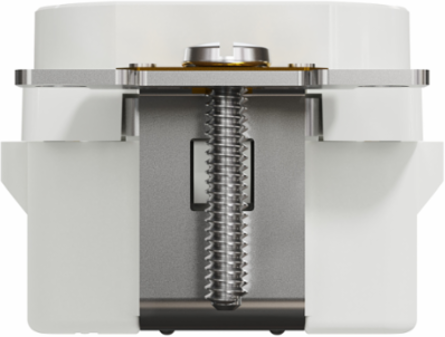

Square D SQR42201WH X Series 20A 125V Tamper Resistant Duplex Outlet, 1 Gang, White
Square D SQR42201WH X Series 20A 125V Tamper Resistant Duplex Outlet, 1 Gang, White
- MPN: SQR42201WH
- UPC: 785901535645
- PPN: SCH-SQR42201WH
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$6.43/ EA
Description
This tamper-resistant duplex outlet from Schneider Electric is engineered for safety and convenience, making it an essential addition to any electrical installation. Designed to accommodate a 20A, 125V configuration, it enhances the usability of your spaces while protecting against accidental insertions. The sleek white finish of this 1-gang outlet seamlessly blends with a variety of decor styles, ensuring that functionality does not compromise aesthetics. Ideal for residential and commercial applications alike, this outlet embodies reliable performance and advanced safety features.
Specifications
- Rated Operational Current
- 20 A
- Network Frequency
- 60 Hz
- Outlet Poles Configuration
- 2P + E
- Outlet Standard
- NEMA 5-20R
- Mounting Mode
- by screws
- Number Of Modules
- 1
- Height
- 103 mm (4.06 in)
- Material
- plastic (strap), metal (fixing frame)
- Connections - Terminals

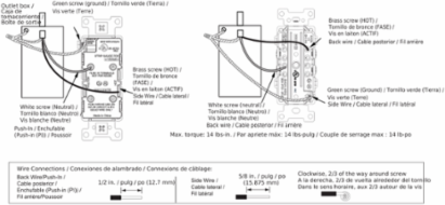

- phase and neutral 4 screw terminal AWG 12...AWG10 copper, earth 1 screw terminal copper
- Product Certifications
- cULus
- Colour
- white
- Aesthetic Name
- X Series
Rated Operational Voltage125 V
Network TypeAC
Socket Number2
Device Mountingflush
Number Of Gangs1 gang
Width37 mm (1.46 in)
Depth27 mm (1.06 in)
Surface Finishmatt
Earth Circuitself earthing
StandardsUL 498, NEMA 5-20R
Country of OriginCN
