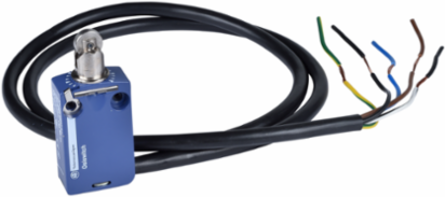

Telemecanique Sensors XCMD2102T2 Limit switch, Limit switches XC Standard, non c roller head cab en50306
- MPN: XCMD2102T2
- PPN: TES-XCMD2102T2
- UNSPSC: 39122213
CAD
$278.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, non c roller head cab en50306
Documentation & Downloads
Specifications
Key Specifications
| Movement Of Operating Head | linear |
|---|---|
| Fixing Mode | by the body |
| Sensor Design | miniature |
| Head Material | zamak |
| Head Type | plunger head |
| Series Name | standard format |
| Body Type | fixed |
| Body Material | zamak |
| Number Of Poles | 2 |
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Type Of Operator | spring return roller plunger metal |
| Product Or Component Type | limit switch |
| Material | metal |
| Type Of Approach | lateral approach, 2 directions |
| Contacts Type And Composition | 1 NC + 1 NO |
| Contact Operation | snap action |
| Device Short Name | XCMD |
Complementary
| Height | 50-50 mm |
|---|---|
| Electrical Connection | removable cable connector |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60664 || 4 kV IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 400 V 3)IEC 60947-5-1 || 300 V 3) |
| Positive Opening Minimum Force | 35 N |
| Contacts Insulation Form | Zb |
| Maximum Actuation Speed | 0.5 m/s |
| Minimum Force For Tripping | 7 N |
| Contact Code Designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A |
| Depth | 16 mm |
| Short-Circuit Protection | 6 A cartridge fuse gG |
|---|---|
| Cable Length | 2 m |
| Switch Actuation | by 30° cam |
| Electrical Durability | 5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Positive Opening | with |
| Mechanical Durability | 10000000 cycles |
| Wire Insulation Material | PUR |
| Cable Composition | 5 x 0.75 mm² |
| Width | 30 mm |
Environment
| Product Certifications | UL || CSA |
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Shock Resistance | 25 gn 18 ms IEC 60068-2-27 |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 IEC 60529 || IP68 IEC 60529 |
| Ik Degree Of Protection | IK06 EN 62262 |
|---|---|
| Standards | UL 508 || EN 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-1 |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 |
| Overvoltage Category | class I |
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Mercury Free | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
