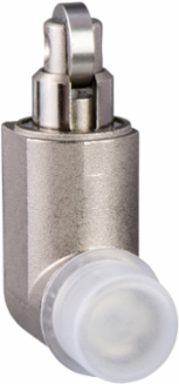

Telemecanique Sensors ZCE65 Limit switch head, Limit switches XC Standard, ZCE, side steel roller plunger vertical

MPN: ZCE65
PPN: TES-ZCE65
UNSPSC: 39122213

$51.08

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch head, Limit switches XC Standard, ZCE, side steel roller plunger vertical

Documentation & Downloads

Specifications

Key Specifications

Type Of Approach	vertical approach, 2 directions
Movement Of Operating Head	linear
Type Of Operator	side roller plunger spring return metal with vertical roller)
Associated Body	ZCP27 \|\| ZCP39 \|\| ZCMD21C12 \|\| ZCD31 \|\| ZCT25G11 \|\| ZCMD61M12 \|\| ZCD29 \|\| ZCT26N12 \|\| ZCMD41L2 \|\| ZCT21P16 \|\| ZCP28 \|\| ZCD35 \|\| ZCMD81L1 \|\| ZCT28P16 \|\| ZCP21M12 \|\| ZCP35 \|\| ZCMD25L2 \|\| ZCT25P16 \|\| ZCMD41L5 \|\| ZCD21M12 \|\| ZCMD21L08R12 \|\| ZCD26 \|\| ZCMD21L08U78 \|\| ZCT26P16 \|\| ZCT21N12 \|\| ZCMD39L5 \|\| ZCMD41L1 \|\| ZCP29M12 \|\| ZCMD21M12 \|\| ZCMD21L2 \|\| ZCT28G11 \|\| ZCD39 \|\| ZCT21G11 \|\| ZCMD29L1 \|\| ZCMD39L1 \|\| ZCMD39L2 \|\| ZCMD29C12 \|\| ZCMD21L1 \|\| ZCD28 \|\| ZCP31 \|\| ZCP26 \|\| ZCMD81L5 \|\| ZCMD25L5 \|\| ZCMD29L2 \|\| ZCMD37L5 \|\| ZCD27 \|\| ZCT25N12 \|\| ZCMD21L5 \|\| ZCT27N12 \|\| ZCP29 \|\| ZCP37 \|\| ZCD37 \|\| ZCP25 \|\| ZCMD29L5 \|\| ZCMD69C12 \|\| ZCMD61C12 \|\| ZCT27P16 \|\| ZCD25 \|\| ZCMD25L1 \|\| ZCMD81L2 \|\| ZCT28N12 \|\| ZCT27G11 \|\| ZCD21 \|\| ZCD29M12 \|\| ZCP21 \|\| ZCMD37L1 \|\| ZCT26G11 \|\| ZCMD37L2
Device Short Name	ZCE

Series Name	standard format
Range Of Product	Telemecanique Limit switches XC Standard
Product Or Component Type	limit switch head
Product Compatibility	XCKD \|\| XCMD \|\| XCKT \|\| XCKP
Head Type	plunger head

Complementary

Switch Actuation	by 30° cam

Positive Opening	without

Environment

Ambient Air Temperature For Operation	-25-70 °C
Environmental Characteristic	standard environment

Ambient Air Temperature For Storage	-40-70 °C

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110614EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
