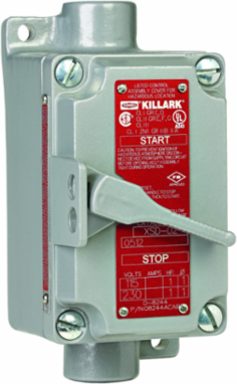

Killark XS-52C XS Series - Aluminum Feed-Thru 2-Pole Tumbler Switch Unit - Hub Size 3/4 Inch - 20A
- MPN: XS-52C
- UPC: 783936930565
- PPN: HBL-XS-52C
- UNSPSC: 39122211
CAD
$424.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
XS Series - Aluminum Feed-Thru 2-Pole Tumbler Switch Unit - Hub Size 3/4 Inch - 20A
Features
- Front lever rotary operated switch assemblies.
- Standard provisions for padlocking in either “ON” or “OFF” position.
- The lever is connected to a threaded stainless steel shaft which passes through the cover.
- Killark XCS SERIES TUMBLER SWITCH Control Stations provide control means in hazardous location areas turning ON and OFF Motors, Fans, Lights etc. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Key Specifications
- Number of Poles
- 2
- ARRA Compliant
- Contact Manufacturer
- Back Box Type
- SWB
- Depth
- 4-1/4 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Actuator
- Lever
- Application
- Used where making, breaking, or changing connections in an electric circuit is required.
- Number Of Poles
- 2
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 2.4
- Series
- XS Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Special FeaturesKillark XCS SERIES TUMBLER SWITCH Control Stations provide control means in hazardous location areas turning ON and OFF Motors, Fans, Lights etc. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Country of OriginChina
ColorGray
Width3.000 in
ActionDP
Amperage Rating20 A
Frequency Rating50/60 Hz
TypeAluminum Tumbler Switch Box And Cover
Description - InvoiceCLI 20A 2P 3/4" FEED-THRU (CS)
Harmonization Code8536509901
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11712
UL File NumberE53360
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936930565
NAICS Code3353146111
Certifications
- EU RoHS Indicator
- Contact Manufacturer
