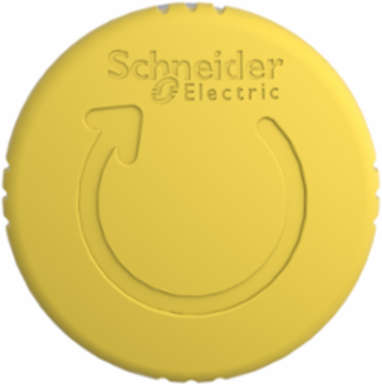

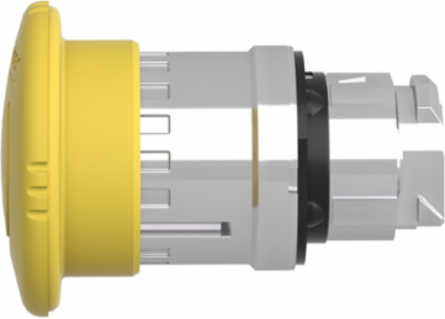

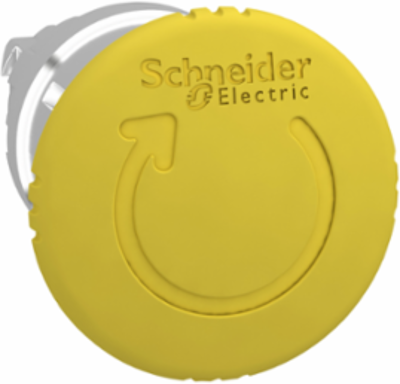

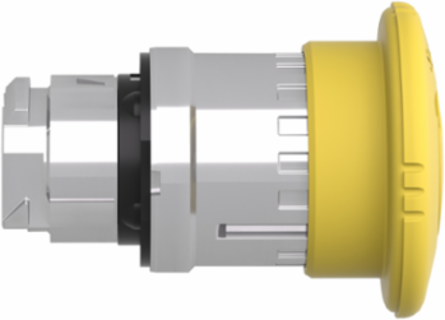

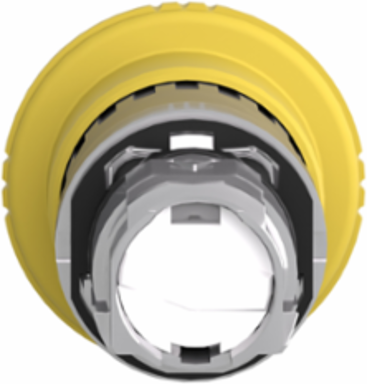

Schneider Electric ZB4BS55 Head for non illuminated push button, Harmony XB4, Mushroom push button head 40mm, armony XB4, metal, yellow, 22mm, latching turn realease

Head for non illuminated push button, Harmony XB4, Mushroom push button head 40mm, armony XB4, metal, yellow, 22mm, latching turn realease
Head for non illuminated push button, Harmony XB4, Mushroom push button head 40mm, armony XB4, metal, yellow, 22mm, latching turn realease
Head for non illuminated push button, Harmony XB4, Mushroom push button head 40mm, armony XB4, metal, yellow, 22mm, latching turn realease
Head for non illuminated push button, Harmony XB4, Mushroom push button head 40mm, armony XB4, metal, yellow, 22mm, latching turn realease
Head for non illuminated push button, Harmony XB4, Mushroom push button head 40mm, armony XB4, metal, yellow, 22mm, latching turn realease
  • MPN: ZB4BS55
  • PPN: SCH-ZB4BS55

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$77.22/ EA

    Description

    This Harmony XB4, 40mm mushroom yellow button head operates with latched turn to release mechanism. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.

    Specifications

    Environment

    Product Certifications
    UL listed || LROS (Lloyds register of shipping) || DNV || GL || CSA || BV
    Ambient Air Temperature For Operation
    -40-70 °C
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Ip Degree Of Protection
    IP66 IEC 60529 || IP67 || IP69 || IP69K
    Overvoltage Category
    class I IEC 60536
    Protective Treatment
    TH
    Ik Degree Of ProtectionIK06 conforming to IEC 50102
    StandardsCSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
    Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
    Ambient Air Temperature For Storage-40-70 °C
    Nema Degree Of ProtectionNEMA 13 || NEMA 4X

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP2201004EN
    Toxic Heavy Metal Free
    Yes
    Reach Free Of Svhc
    Yes
    Circularity Profile
    ENVEOLI2201004EN
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationFree of Substances of Very High Concern above the threshold
    China Rohs RegulationX
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

    Complementary

    Electrical Composition Code
    C11 3 single front mounting || C15 1 single front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C10 4 single and double front mounting
    Cad Overall Height
    40 mm
    Mechanical Durability
    500000 cycles
    Cad Overall Depth
    57 mm
    Net Weight0.07 kg
    Device Presentationbasic element
    Cad Overall Width40 mm

    Specifications

    Reset
    turn to release
    Mounting Diameter
    22 mm
    Product Or Component Type
    head for non-illuminated push-button
    Head Type
    standard
    Bezel Material
    chromium plated metal
    Device Short Name
    ZB4
    Range Of ProductHarmony XB4
    Type Of Operatorlatching
    Shape Of Signaling Unit Headround
    Sale Per Indivisible Quantity1
    Operator Profileyellow mushroom Ø 40 mm, unmarked
