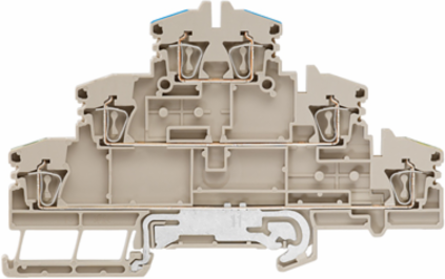

Weidmuller 1131760000 Tension-Clamp Modular Terminal Block, 2.5 mm2, 500 V, 20 A, 3-Tier
- MPN: 1131760000
- PPN: WDM-1131760000
CAD
$11.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Multi-tier modular terminal, Tension-clamp connection, 2.5 mm², 500 V, 20 A, dark beige
Documentation & Downloads
Specifications
Approvals
- Approvals
- CSA, EAC, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 5.1 mm
- Height
- 110.5 mm
- Depth
- 69 mm
- Depth including DIN rail
- 70 mm
Width (inches)0.201 inch
Height (inches)4.35 inch
Depth (inches)2.717 inch
Net weight21 g
Csa Rating Data
- Certificate No. (CSA)
- 200039-1228250
- Current size C (CSA)
- 15 A
- Voltage size B (CSA)
- 300 V
- Voltage size D (CSA)
- 300 V
- Wire cross section min. (CSA)
- 26 AWG
Current size B (CSA)15 A
Current size D (CSA)10 A
Voltage size C (CSA)150 V
Wire cross section max. (CSA)12 AWG
Additional Technical Data
- Installation advice
- Direct mounting
- Type of mounting
- Snap-on
Open sidesright
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
System Specifications
- Version
- Tension-clamp connection, N, L and PE connection, for plug-in cross-connector, One end without connector
- Number of levels
- 3
- Levels cross-connected internally
- No
- Rail
- TS 35
End cover plate requiredYes
Number of clamping points per level2
PE connectionYes
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 2.5 mm²
- Rated current
- 20 A
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Pollution severity
- 3
Rated voltage500 V
Volume resistance according to IEC 60947-7-x1.33 mΩ
Rated impulse withstand voltage6 kV
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.08 mm²
- Gauge to IEC 60947-1
- A2
- Stripping length
- 10 mm
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 2.5 mm²
Clamping range, max.2.5 mm²
Connection directiontop
Number of connections6
Type of connectionTension-clamp connection
Wire connection cross section AWG, min.AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.1.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 26 AWG
- Conductor size Field wiring min. (UR)
- 26 AWG
- Current size C (UR)
- 15 A
- Voltage size B (UR)
- 300 V
- Voltage size D (UR)
- 300 V
- Wire cross section min. (UR)
- 26 AWG
Conductor size Factory wiring max. (UR)12 AWG
Conductor size Field wiring max. (UR)12 AWG
Current size B (UR)15 A
Current size D (UR)10 A
Voltage size C (UR)150 V
Wire cross section max. (UR)12 AWG
