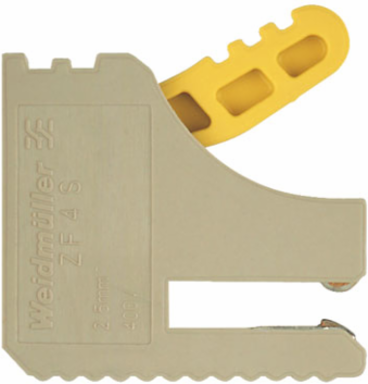

Weidmuller 1814660000 ZF 4 S BL
- MPN: 1814660000
- PPN: WDM-1814660000
CAD
$1.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Accessories, Special terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, Wemid, blue, Direct mounting, Busbar
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC, KEMAKEUR
ROHSConform
Dimensions And Weights
- Width
- 6.1 mm
- Height
- 24.5 mm
- Depth
- 22 mm
- Net weight
- 4.52 g
Width (inches)0.24 inch
Height (inches)0.965 inch
Depth (inches)0.866 inch
Additional Technical Data
- Installation advice
- Direct mounting, Busbar
Type of mountingPlugged
Material Data
- Material
- Wemid
- Colour
- silver
Insulating materialWemid
UL 94 flammability ratingV-0
Classifications
- ETIM 6.0
- EC000001
- eClass 9.0
- 27-14-11-46
- eClass 10.0
- 27-14-11-46
ETIM 7.0EC000001
eClass 9.127-14-11-46
UNSPSC30-21-18-11
System Specifications
- Version
- for busbar 10 x 3 mm
Temperatures
- Operating temperature range, max.
- 120 °C
- Continuous operating temp., max.
- 120 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 2.5 mm²
- Rated current
- 24 A
- Volume resistance according to IEC 60947-7-x
- 1.33 mΩ
- Rated impulse withstand voltage
- 6 kV
- Surge voltage category
- III
Rated voltage400 V
StandardsIEC 60947-7-1
Power loss in accordance with IEC 60947-7-x0.77 W
Pollution severity3
Conductors For Clamping (Rated Connection)
- Connection direction
- on side
- Stripping length
- 10 mm
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
Number of connections1
Type of connectionTension-clamp connection
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
