Weidmuller 1814680000 ZF 4 S
- MPN: 1814680000
- PPN: WDM-1814680000
CAD
$1.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

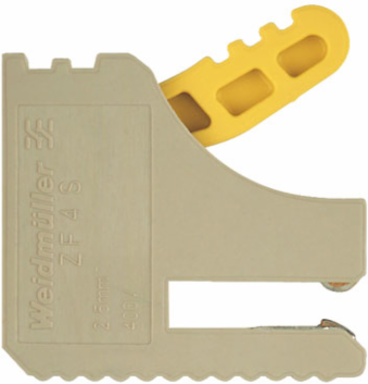

Accessories, Special terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, Wemid, dark beige, Direct mounting, Busbar
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC, KEMAKEUR |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 6.1 mm |
|---|---|
| Height | 24.5 mm |
| Depth | 22 mm |
| Net weight | 4.5 g |
| Width (inches) | 0.24 inch |
|---|---|
| Height (inches) | 0.965 inch |
| Depth (inches) | 0.866 inch |
Additional Technical Data
| Installation advice | Direct mounting, Busbar |
|---|
| Type of mounting | Plugged |
|---|
Material Data
| Material | Wemid |
|---|---|
| Colour | silver |
| Insulating material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
Classifications
| ETIM 6.0 | EC000001 |
|---|---|
| eClass 9.0 | 27-14-11-46 |
| eClass 10.0 | 27-14-11-46 |
| ETIM 7.0 | EC000001 |
|---|---|
| eClass 9.1 | 27-14-11-46 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | for busbar 10 x 3 mm |
|---|
Temperatures
| Operating temperature range, max. | 120 °C |
|---|---|
| Continuous operating temp., max. | 120 °C |
| Continuous operating temp., min. | -50 °C |
|---|
Rating Data
| Rated cross-section | 2.5 mm² |
|---|---|
| Rated current | 24 A |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Surge voltage category | III |
| Rated voltage | 400 V |
|---|---|
| Standards | IEC 60947-7-1 |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Pollution severity | 3 |
Conductors For Clamping (Rated Connection)
| Connection direction | on side |
|---|---|
| Stripping length | 10 mm |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Number of connections | 1 |
|---|---|
| Type of connection | Tension-clamp connection |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
