Leviton

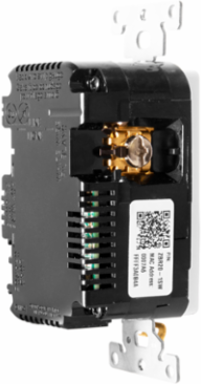

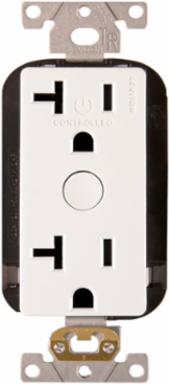

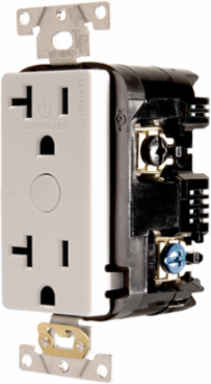

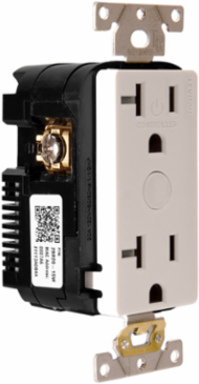

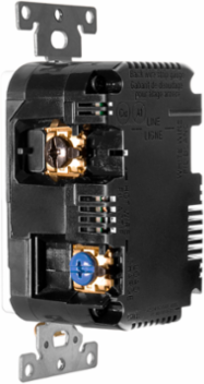

Leviton ZBR20-1SW GreenConnect, 20A Duplex Receptacle, Wireless Controlled Receptacle

GreenConnect, 20A Duplex Receptacle, Wireless Controlled Receptacle
GreenConnect, 20A Duplex Receptacle, Wireless Controlled Receptacle
GreenConnect, 20A Duplex Receptacle, Wireless Controlled Receptacle
GreenConnect, 20A Duplex Receptacle, Wireless Controlled Receptacle
GreenConnect, 20A Duplex Receptacle, Wireless Controlled Receptacle
  • MPN: ZBR20-1SW
  • UPC: 078477001752
  • PPN: LEV-ZBR20-1SW

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$237.71/ EA

Description

GreenConnect Wireless 20A Duplex Receptacle with downstream control; 120V, 50/60Hz

Features

  • Top outlet is controlled, bottom outlet is always ON
  • Programming button can be used to manually toggle the controlled outlet ON/OFF
  • Rated for 20A of full commercial loads
  • Downstream control of additional receptacles
  • Meets 2017 NEC code for tamper resistance
  • Can be used to meet energy code requirements for IECC, ASHRAE 90.1, and 2025 Title 24 plug load controls
  • The GreenConnect Wireless 20A feed-through ontrolled receptacle (ZBR20) is a simple, energy code compliant plug load control solution. Pair the receptacle with a load controller and sensor in a GreenConnect network of up to 16 devices for ON/OFF control based on occupancy. The receptacle is split with the top outlet controlled and the bottom outlet always on. The ZBR20 also allows for additional receptacles to be wired downstream and controlled together with the top outlet by the network.

Specifications

Electrical Specifications

Frequency
2.4GHz, IEEE 802.15.4, up to 75’ range between devices
Input Voltage
120VAC, 60Hz
IP RatingIP10
Load Rating(General Purpose/Resistive @ 125V: 20A Type: 2P, 3W, back-wired) Incandescent @ 125V: 1500W. (LED/E-Ballast @ 125V: 5A.) Motor @ 125V: 1HP.

Product Features

Code Compliance
Can be used as a component in a system to meet energy code requirements for IECC, ASHRAE 90.1, and 2025 Title 24, Part 6.
Product Type
Wireless 20A Duplex Receptacle
Weight
0.50lbs (0.22kg)
Product LineGreenConnect
Warranty5-Year

Environmental Specifications

Operating Humidity
≤ 85%
Storage Temperature
-4 to 140°F (-20° to 60°C)
Operating Temperature20A rated up to 25°C, 15A rated up to 45°C

Specifications

Country of Origin
China
RoHS CompliantFalse
