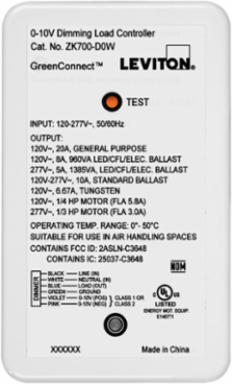

Leviton ZK700-D0W GreenConnect, Load Controller, 0-10V Dimming, Wireless Lighting Control
- MPN: ZK700-D0W
- UPC: 078477570890
- PPN: LEV-ZK700-D0W
CAD
$186.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
GreenConnect Wireless 0-10V Dimming Load Controller
Features
- Robust and reliable—mechanically held latching relay for high inrush (LED) and large commercial loads
- Compatible with multiple load types—LED, HID, inductive, fluorescent, etc.
- Integrated High Inrush Stability (H.I.S.) relay—designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service
- LED status indicators
- Local toggle/test/program switch
- Complies with IEEE 802.15.4 standards —for domestic and international wireless networks
- Code compliant energy management functionality—can be used as a component in a system to meet energy code requirements for IECC, ASHRAE 90.1,and 2025 Title 24, Part 6 space/area control, dimming, manual-ON/OFF, occupancy/vacancy control and automatic shutoff requirements
- GreenConnect Load Controllers are used for 0-10V and forward phase dimming, and general-purpose switching including receptacle circuit control. Quickly connect a Load Controller to a GreenConnect wireless dimmer, switch, or receptacle using Push-to-Pair (P2P).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Environmental Specifications
- Operating Temperature
- 32 to 122° F (0 to 50°C)
Storage Temperature-40 to 185° F (-40 to 85°C)
Electrical Specifications
- Frequency
- 2.4GHz wireless mesh network up to 75 ft range between device, IEEE 802.15.4
- Input Voltage
- 120-277VAC, 50/60Hz
Input Current120V - Standby: 0.2W, Max: 0.5W + Load Current. 277V - Standby: 0.3W, Max: 0.6W + Load Current.
Product Features
- Code Compliance
- Can be used as a component in a system to meet energy code requirements for IECC, ASHRAE 90.1, and 2025 Title 24, Part 6 space/area control, dimming, manual-ON/OFF, occupancy/vacancy control and automatic shutoff requirements.
- Product Line
- GreenConnect
- Warranty
- 5-Year
IP RatingIP30
Product TypeWireless Load Controller
Weight.5lbs (0.22Kg)
