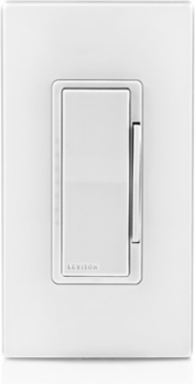

Leviton ZB700-30Z GreenConnect, Wall Dimmer, 0-10V, 347VAC, Wireless Lighting Control
- MPN: ZB700-30Z
- UPC: 078477570876
- PPN: LEV-ZB700-30Z
CAD
$205.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
GreenConnect Wireless 0-10V Wall Dimmer, 347VAC, 50/60Hz, 4A Load, 0-10V Sinking, 50mA, White
Features
- Use as a standalone dimmer switch or pair with another switch, dimmer, or sensor in a GreenConnect network of up to 16 devices
- Compatible with multiple 0-10V dimming load types
- Robust and reliable mechanically held latching High Inrush Stability (HIS) relay for large commercial loads
- Classic Decora® rocker with dimming bar for simple ON/OFF and raise/lower control
- LED indicators for light level and locating in a dark room
- Easy installation in any single-gang device box
- Includes White, Ivory, and Light Almond face plates
- Color change kits are available in White, Ivory, Light Almond, Gray, Black, and Brown
- Complies with IEEE 802.15.4 standards for domestic and international wireless networks
- Can be used as a component in a system to meet code requirements for IECC, ASHRAE 90.1, and 2025 Title 24, Part 6 space/area control, dimming, manual-ON/OFF, occupancy/vacancy control and automatic shutoff requirements
- The GreenConnect Wireless 0-10V Wall Dimmer (ZB700) is a robust Decora® dimmer switch. Use it to control local lighting loads, including high inrush LED, or pair it with another ZB700 in a GreenConnect network for multi-way switching or dimming.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Code Compliance
- Can be used as a component in a system to meet energy code requirements for IECC, ASHRAE 90.1, and 2025 Title 24, Part 6.
- Product Line
- GreenConnect
- Warranty
- 5-Year
IP RatingIP10
Product TypeWireless 0-10V Wall Dimmer
Weight0.25lbs (0.11kg)
Electrical Specifications
- Frequency
- 2.4Ghz wireless mesh network up to 75’ range between devices, IEEE 802.15.4
- Input Voltage
- 347VAC, 50/60Hz
Input Current120V - Not rated for use. 277V - Not rated for use. 347V - 0.5W + Load Current.
Environmental Specifications
- Operating Temperature
- 32° to 104° F (0° to 40° C)
Storage Temperature-40° to 185° F (-40° to 85° C)
