Leviton

Leviton ZBK00-CDW GreenConnect, Wireless Companion Dimmer. Wireless Lighting Control

GreenConnect, Wireless Companion Dimmer. Wireless Lighting Control
  • MPN: ZBK00-CDW
  • UPC: 078477019481
  • PPN: LEV-ZBK00-CDW

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$116.11/ EA

Description

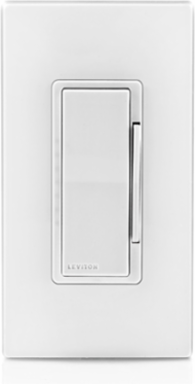

GreenConnect Wireless Companion Dimmer, Battery Powered, White

Features

  • True wireless, multi-way switching or dimming when paired with a GreenConnect load controller, dimmer, or switch
  • LED indicators for light level and locating in a dark room
  • Mounts directly to the wall surface or into a single or multi-gang wall-box
  • Wireless range of 50ft
  • Classic Decora® rocker with dimming bar for simple ON/OFF and raise/lower control
  • Use with single or multi-gang Decora® wall-plates
  • Easy to replace CR2025 batteries with an estimated battery life of five years
  • Complies with IEEE 802.15.4 standards for domestic and international wireless networks
  • Can be used as a component in a system to meet code requirements for IECC, ASHRAE 90.1, and 2025 Title 24, Part 6 space/are control, dimming, manual-ON/OFF, occupancy/vacancy control and automatic shutoff requirements
  • The GreenConnect Wireless Companion Switch and Dimmer pair wirelessly with a GreenConnect load controller to provide a simple to install solution for wireless manual lighting control. The GreenConnect Wireless Companion Switch and Dimmer can be mounted directly onto a wall surface, or into single or multi-gang device wall-box, no wiring required. The GreenConnect Wireless Companion Switch and Dimmer are the perfect solutions for locations where installing a new device wall-box or wiring is difficult or cost-prohibitive.

Specifications

Specifications

Country of Origin
China
RoHS CompliantFalse

Product Features

Code Compliance
Can be used as a component in a system to meet energy code requirements for IECC, ASHRAE 90.1, and 2025 Title 24, Part 6.
Listings
UL 1472, CSA C22.2 No. 184.1-15, FCC Part 15, Class B
Product Type
Battery-Powered Companion Dimmer
Weight
0.15lbs (0.07kg)
IP RatingIP10
Product LineGreenConnect
Warranty5-Year

Environmental Specifications

Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
14°F to 185°F (-10°C to 85°C)
Relative Humidity0-90% non-condensing

Electrical Specifications

Battery
CR2025 x2.3V

Wireless Specifications

Frequency
2.4GHz
Product Range50 ft
