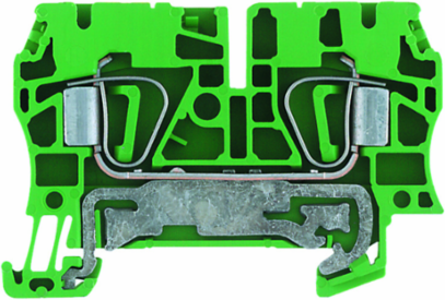

Weidmuller 1632080000 ZPE 4
- MPN: 1632080000
- PPN: WDM-1632080000
CAD
$8.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PE terminal, Tension-clamp connection, 4 mm², 480 A (4 mm²), Green/yellow
Documentation & Downloads
Specifications
Additional
| Amperage | 480 A (4 mm2) |
|---|---|
| Rated DC Voltage | 800 V |
| Power Loss | 1.02 W |
| Stripping Length | 12 mm |
| Depth | 43 mm (1.693 inch) |
| Height | 64 mm (2.52 inch) |
| Type of Connection | Tension-clamp connection |
| Number of Potentials | 1 |
| Number of Clamping Points Per Level | 2 |
| Wire Cross Section Range | 0.13 mm2 to 6 mm2 (AWG 26 min, AWG 10 max) |
| Type | PE terminal |
| Connection Direction | Top |
| Color | Green/yellow |
| UL 94 Flammability Rating | V-0 |
| Explosion Tested | Yes |
| Approvals | CE, CSA, CURUSEX, DEMKOATEX, DNV GL, EAC, IECEXULD, INMETRO, KEMAATEX, KEMAKEUR, LLOYDSREG, MARITREG, RINA, UR |
| Standard | IEC 60947-7-2 |
| Rated Voltage | 800 V |
|---|---|
| Rated Impulse Withstand Voltage | 8 kV |
| Operating Temperature Range | -50 C to 120 C |
| Width | 6.1 mm (0.24 inch) |
| Depth including DIN Rail | 43.5 mm |
| Net Weight | 15.96 g |
| Number of Connections | 2 |
| Number of Levels | 1 |
| Blade Size | 0.6 x 3.5 mm |
| PE Connection | Yes |
| Mounting Rail | TS 35 |
| Material | Wemid |
| Storage Temperature Range | 10 C to 40 C |
| Pollution Severity | 3 |
| End Cover Plate Required | Yes |
| Certificate Numbers | CSA: 200039-1152892, ATEX: KEMA97ATEX2521U, UR: E60693, IECEX: IECEXULD15.0008U |
