Weidmuller 1814700000 ZSI 6-2/FC LD

MPN: 1814700000
PPN: WDM-1814700000

$23.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

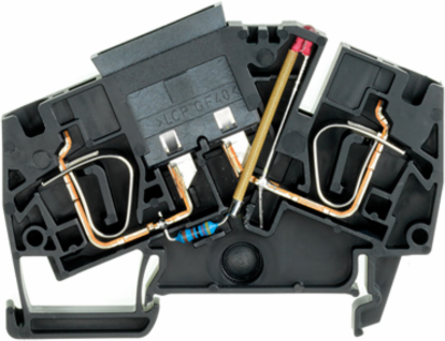

Z-series, Fuse terminal, Rated cross-section: 6 mm², Tension-clamp connection, black, Direct mounting

Documentation & Downloads

Specifications

Approvals

Approvals	CE, CSA, cURus, DNV GL, EAC
UL File Number Search	E60693

ROHS	Conform

Display Element

Type of voltage for indicator	AC/DC

Dimensions And Weights

Width	8.1 mm
Height	70 mm
Depth	50 mm
Depth including DIN rail	51 mm

Width (inches)	0.319 inch
Height (inches)	2.756 inch
Depth (inches)	1.969 inch
Net weight	18.72 g

Fuse Terminals

Cartridge fuse	Blade fuse type C
Fuse holder (cartridge holder)	pluggable
Power loss for short-circuit protection only for a composite arrangement	1.9 W at 24.0 A @ 28°C
Type of voltage for indicator	AC/DC

Display	Red LED
Operating voltage, max.	36 V
Power loss for short-circuit protection only for an individual arrangement	3.0 W at 30.0 A @ 24°C

Csa Rating Data

Certificate No. (CSA)	200039-1152892
Wire cross section min. (CSA)	22 AWG

Wire cross section max. (CSA)	10 AWG

Additional Technical Data

Electronic component	red LED
Installation advice	Direct mounting
Type of mounting	Snap-on

Explosion-tested version	No
Open sides	right

Material Data

Material	Wemid
UL 94 flammability rating	V-0

Colour	black

Safety Note

Safety notice	Safety Information

Classifications

ETIM 6.0	EC000899
eClass 9.0	27-14-11-16
eClass 10.0	27-14-11-16

ETIM 7.0	EC000899
eClass 9.1	27-14-11-16
UNSPSC	30-21-18-11

System Specifications

Version	Tension-clamp connection, Fuse cartridge, with LED, for plug-in cross-connector, One end without connector
Number of potentials	1
Number of clamping points per level	2
Levels cross-connected internally	No
Rail	TS 35
PE function	No

End cover plate required	Yes
Number of levels	1
Number of potentials per tier	1
PE connection	No
N-function	No
PEN function	No

Temperatures

Storage temperature, max.	40 °C
Storage temperature	10 °C...40 °C
Continuous operating temp., max.	120 °C

Storage temperature, min.	10 °C
Continuous operating temp., min.	-50 °C

Conductors For Clamping (Additional Connection)

Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.	6 mm²

Rating Data

Rated cross-section	6 mm²
Rated voltage to adjoining terminal	400 V
Current at maximum wires	30 A
Volume resistance according to IEC 60947-7-x	0.78 mΩ
Rated impulse withstand voltage	6 kV

Rated voltage	36 V
Rated current	30 A
Standards	DIN 72581-3, IEC 60947-7-3
Power loss in accordance with IEC 60947-7-x	1.31 W
Pollution severity	3

Conductors For Clamping (Rated Connection)

Blade size	4.0 x 0.8 mm
Clamping range, min.	0.33 mm²
Gauge to IEC 60947-1	A5
Stripping length	10 mm
Wire connection cross section, finely stranded, max.	10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	10 mm²

Clamping range, max.	10 mm²
Connection direction	top
Number of connections	2
Type of connection	Tension-clamp connection
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	6 mm²
Wire connection cross-section, finely stranded, min.	0.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²
