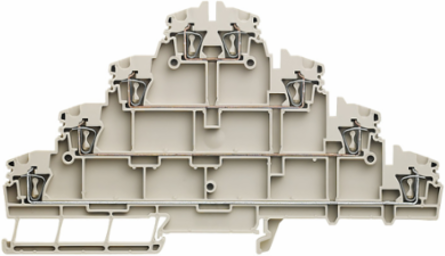

Weidmuller 1208920000 4-Tier Modular Terminal Block, Tension-Clamp Connection, 2.5 mm2, 250 V, 20 A
- MPN: 1208920000
- PPN: WDM-1208920000
CAD
$10.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Multi-tier modular terminal, Tension-clamp connection, 2.5 mm², 250 V, 20 A, dark beige
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 5.1 mm |
|---|---|
| Height | 148 mm |
| Depth | 85 mm |
| Depth including DIN rail | 86 mm |
| Width (inches) | 0.201 inch |
|---|---|
| Height (inches) | 5.827 inch |
| Depth (inches) | 3.346 inch |
| Net weight | 27 g |
Additional Technical Data
| Installation advice | Direct mounting |
|---|
| Type of mounting | Snap-on |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | dark beige |
|---|
Classifications
| ETIM 6.0 | EC000897 |
|---|---|
| eClass 9.0 | 27-14-11-20 |
| eClass 10.0 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
|---|---|
| eClass 9.1 | 27-14-11-20 |
System Specifications
| Version | Tension-clamp connection, for plug-in cross-connector, One end without connector |
|---|---|
| Number of levels | 4 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| End cover plate required | Yes |
|---|---|
| Number of clamping points per level | 2 |
| PE connection | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 120 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
Rating Data
| Rated cross-section | 2.5 mm² |
|---|---|
| Rated current | 20 A |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Rated voltage | 250 V |
|---|---|
| Standards | IEC 60947-7-1 |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Pollution severity | 3 |
Conductors For Clamping (Rated Connection)
| Blade size | 0.6 x 3.5 mm |
|---|---|
| Clamping range, min. | 0.14 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
| Gauge to IEC 60947-1 | A2 |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max. | AWG 16 |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 2.5 mm² |
| Clamping range, max. | 2.5 mm² |
|---|---|
| Connection cross-section, stranded, max. | 2.5 mm² |
| Connection direction | top |
| Number of connections | 8 |
| Type of connection | Tension-clamp connection |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
